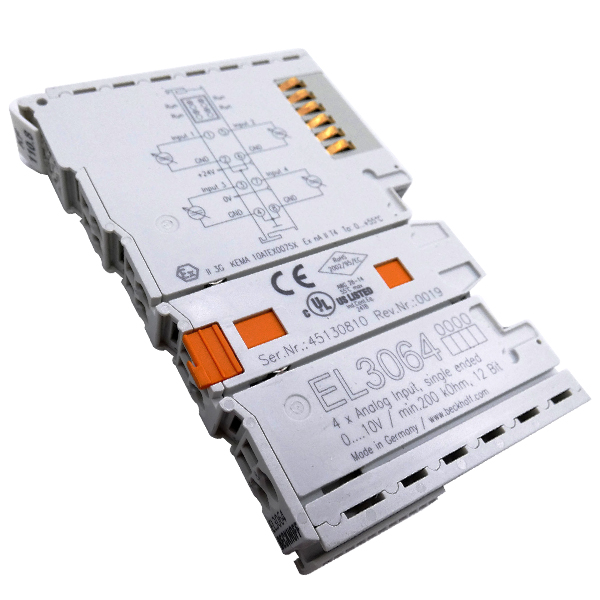

EL3064 | Beckhoff Analog Input Terminal | [STOCK-Ship Same Day] - 4 piece available

Technical DataNumber of inputs: 4 (single-ended)Power supply: via the E-busTechnology: single-endedSignal voltage: 0…10 VInternal resistance: > 130 kOInput filter limit frequency: 1 kHzDielectric strength: max. 30 VConversion time: 0.625 ms default setting, configurable, multiplexResolution: 12 bit (16 bit presentation incl. sign)Measuring error: < ±0.3 % (relative to full scale value)Electrical isolation: 500 V (E-bus/signal voltage)Current consumption E-bus: typ. 130 mABit width in the process image: inputs: 16 byteSpecial features: activatable FIR/IIR filters, limit value monitoringWeight: approx. 60 gOperating/storage temperature: -25…+60 °C/-40…+85 °CRelative humidity: 95 %, no condensationVibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4Protect. class/installation pos.: IP 20/variablePluggable wiring: for all ESxxxx terminalsApprovals/markings: CE, UL, ATEXEx-Marking: II 3 G Ex nA IIC T4 Gc
