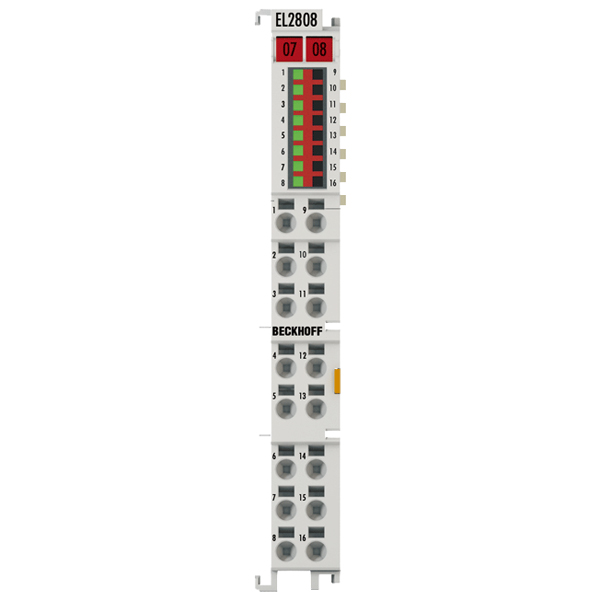

EL2808 | Beckhoff Digital Output Terminal

The EL2808 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with electrical isolation. The EtherCAT Terminal contains eight channels whose signal state is indicated by LEDs. The power contacts are connected through. In the EL2808 the outputs are supplied via the 24 V DC power contact.Special features:Connection of different load types possible (ohmic, inductive, lamp load)Max. output current 0.5 A per channelOverload and short-circuit proof outputs and reverse polarity protectionTool-free connection by direct plug-in technology for solid wire conductorsIncreased packing density with 16 connection points in the housing of a 12 mm terminal block
