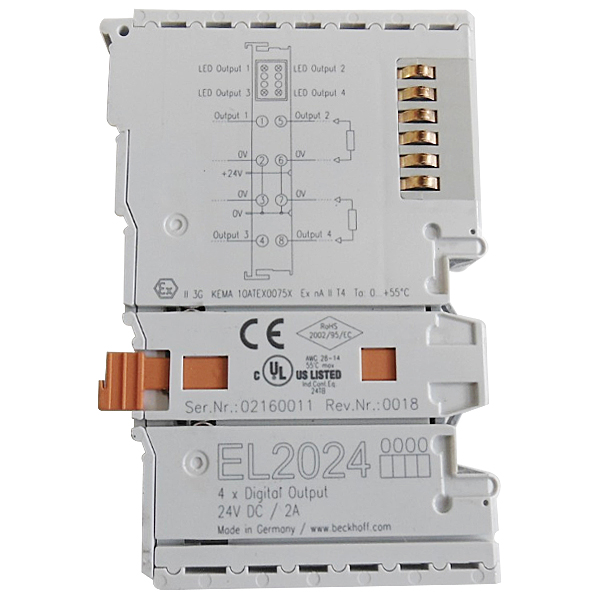

EL2024 | Beckhoff Digital Output Terminal

Part Number: EL2024Model: Digital Output TerminalBrand: BeckhoffTechnical DataConnection technology: 2-wireNumber of outputs: 4Rated load voltage: 24 V DC (-15 %/+20 %)Load type: ohmic, inductive, lamp loadMax. output current: 2.0 A (short-circuit-proof) per channelShort circuit current: typ. < 70 AReverse voltage protection: yesBreaking energy: < 1.7 J/channelSwitching times: typ. TON: 40 µs, typ. TOFF: 200 µsCurrent consumption E-bus: typ. 120 mAElectrical isolation: 500 V (E-bus/field potential)Current consumption power contacts: typ. 13 mA + loadBit width in the process image: 4 outputsConfiguration: no address or configuration settingWeight: approx. 55 gOperating/storage temperature: -25…+60 °C/-40…+85 °CRelative humidity: 95 %, no condensationVibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4Protect. class/installation pos.: IP 20/variablePluggable wiring: for all ESxxxx terminalsApprovals: CE, UL, Ex
