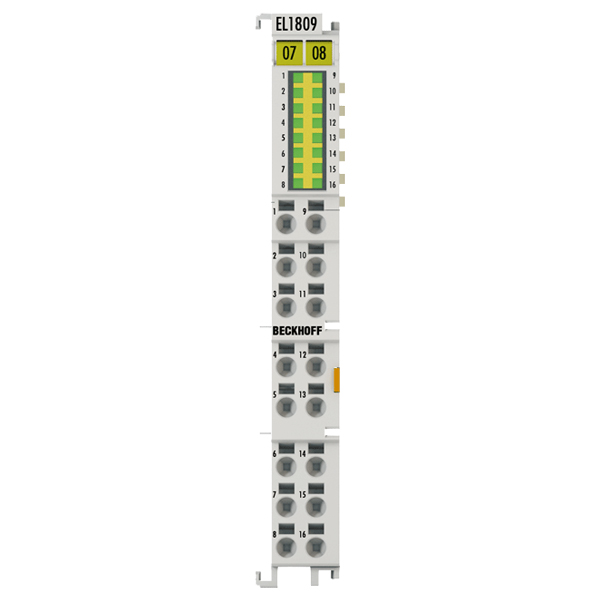

The EL1809 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The EtherCAT Terminal has 16 channels, whose signal states are indicated by LEDs. The power contacts are connected through. With the EL1809, the reference ground for all inputs is the 0 V power contact.Special features:input specification type 1/3no bouncing due to mechanical switches thanks to 3 ms input filtertool-free connection by direct plug-in technique for solid wire conductorsspace-saving use in the control cabinetdirect connection of multi-channel sensors in 1-wire connection technology in the smallest spaceincreased packing density with 16 connection points in the housing of a 12 mm terminal block
