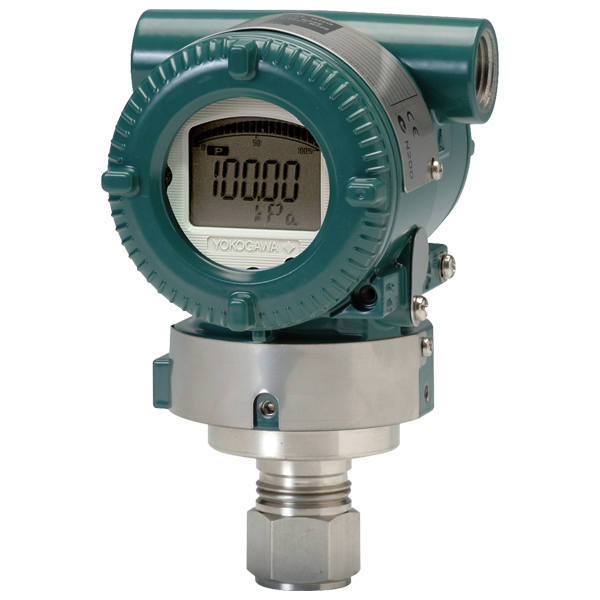

EJX630A-EDS4N-02DDN/M15/T06/KU22 | Yokogawa EJX630A Gauge Pressure Transmitter

Part Number: EJX630A-EDS4N-02DDN/M15/T06/KU22Model: EJX630A In-Line Mount High Performance Gauge Pressure TransmitterManufacturer: YokogawaOverviewThe EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of pressure transmitters.The EJX630A is the high performance In-Line Mount Gauge Pressure Transmitter in the series.EJX630A standard features include:± 0.04% Accuracy (Optional 0.025% Accuracy)± 0.1% per 15 years Stability90 ms Response Time15,200 psiExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)SpecificationsMeasurement TypePrimary Variable: Absolute PressureReference AccuracyPrimary Variable:±0.04% of Span±0.025% of Span (/HAC option)StabilityPrimary Variable: ±0.1% of URL per 15 yearsResponse TimePrimary Variable: 90msRangeabilityPrimary Variable: A Capsule: 100:1B, C, or D Capsule: 200:1Burst Pressure (Absolute)A, B, or C Capsule: 7,250 psi (50 MPa)D Capsule: 26,390 psi (182 MPa)Specification ConformanceEJX-A Series: ±3sNOTE: Replacement for EJX630A-EDS4N-02DDN/M15/T06/KU22/JH01
