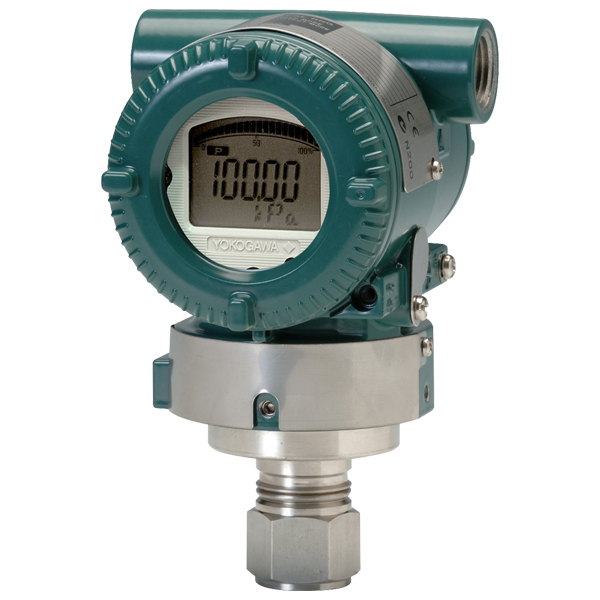

Ordering Information Model EJX630A Gauge pressure transmitter Output signal -E 4 to 20 mA DC Output with digital communication (HART 5 protocol) Measurement span (capsule) D 0.35 to 70 MPa (50.8 to 10150 psi) Wetted parts material(1) S Process connector: 316L SST#Diaphragm: Hastelloy C-276(2)#Others: 316L SST# Process connections 4 1/2 NPT female N Always N -0 Always 0 Amplifier housing 1 Cast aluminum alloy Electrical connection D M20 female, two electrical connections and a 316 SST blind plug Integral indicator D Digital indicator(3) Mounting bracket L 316 SST 2-inch pipe mounting ATEX /KU22 Combined KF22, KS21 and ATEX Intrinsically safe Ex ic(4)(5)[ATEX Intrinsically safe Ex ic]Applicable Standard: EN 60079-0, EN 60079-11II 3G Ex ic IIC T4 Gc, Amb. Temp.: –30 to 60°C (–22 to 140°F)Ui=30 V, Ci=27.6 nF, Li=0 µH(6) Painting - Coating change /X2 Anti-corrosion coating(7) Material certificate(8) /M15 Process Connector Pressure test/ Leak test certificate(9) /T15 Test Pressure: 70 MPa (10150 psi)(10)Nitrogen Gas or Water(11)Retention time: one minute Calibration units(12) /D3 bar calibration (bar unit) The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.Not applicable for output signal code F.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for option code /AL.Not applicable with color change option.Material traceability certification, per EN 10204 3.1 B.The unit on the certificate is always kPa/MPa regardless of selection of option code D1, D3 and D4.Applicable for capsule code D.Dry nitrogen gas or pure water is used for oil-prohibited use (option codes K1, K2, K5, K6, K41, K42, K45, and K46).The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.
