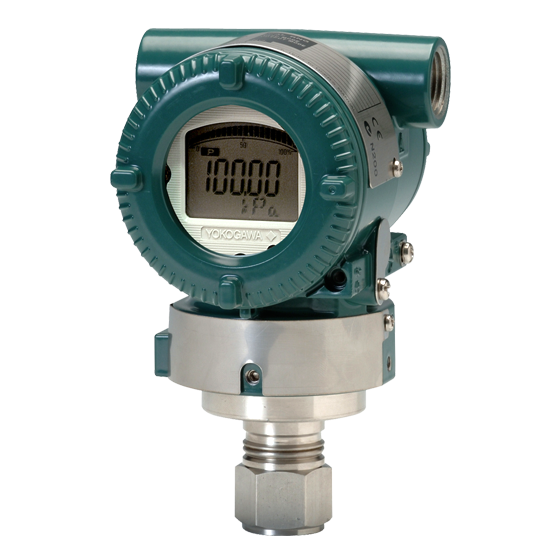

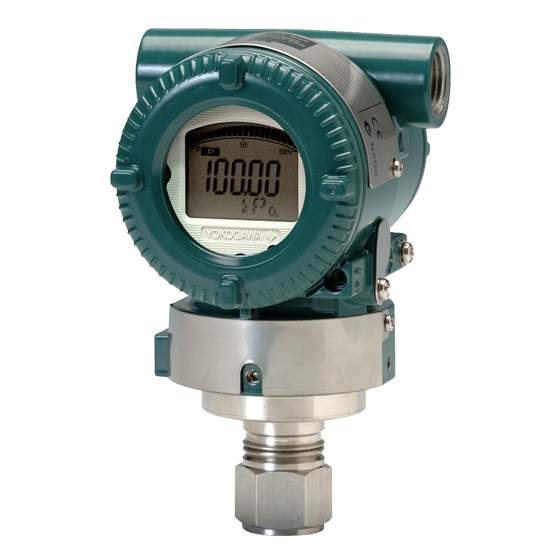

OverviewThe EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX530A is an In-Line Gauge Pressure Transmitter in the series.EJX530A standard features include:±0.04% Accuracy±0.1% per 15 years Stability90 ms Response TimeExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)SpecificationsMeasurement TypesPrimary Variable: Absolute PressureReference AccuracyPrimary Variable: ±0.04% of SpanStabilityPrimary Variable: ±0.1% of URL per 10 yearsResponse TimePrimary Variable: 90msRangeabilityPrimary Variable: A Capsule: 25:1B, C, or D Capsule: 50:1Burst Pressure (Absolute)A, B, or C Capsule: 4,350 psi (30 MPa)D Capsule: 19,100 psi (132 MPa)Specification ConformanceEJX-A Series: ±3sModel and Suffix Codes Model EJX530A Gauge pressure transmitter Output signal -J 4 to 20 mA DC with digital communication (HART 5 / HART 7 protocol) (Refer to GS 01C25T01-01EN) Measurement span (capsule) D 0.5 to 50 MPa (72.5 to 7200 psi) Wetted parts material(1) S Process connector: 316L SST#Diaphragm: Hastelloy C-276(2)#Others: 316L SST# Process connections 4 1/2 NPT female N Always N -0 Always 0 Amplifier housing 3 Cast aluminum alloy with corrosion resistance properties(3) Electrical connection 2 1/2 NPT female, two electrical connections without blind plugs Integral indicator D Digital indicator(4) Mounting bracket L 316 SST 2-inch pipe mounting Calibration units(5) /D4 M calibration (kgf/cm² unit) Fluoro-rubber O-ring /HE All O-rings of amplifier housing. Lower limit of ambient temperature: –15°C (5°F) The “*” marks indicates the most typical selection for each specification. Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material. Hastelloy C-276 or ASTM N10276.Not applicable for electrical connection code 0, 5, 7, 9 and A. Not applicable for output signal code G.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4. The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.
