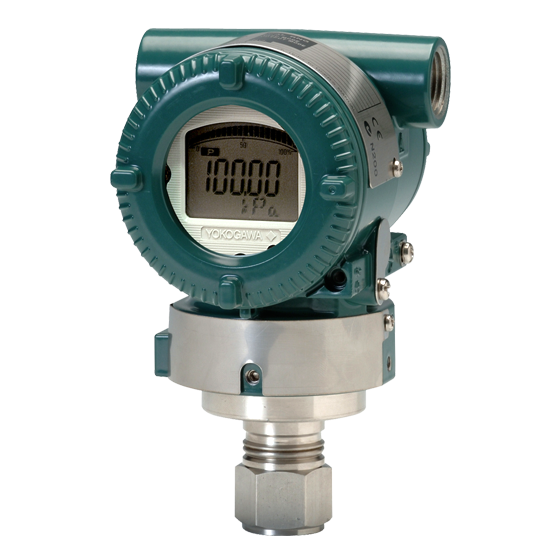

EJX530A-ESC4N-019DN/KU22/D3/M15/T07 | Yokogawa EJX530A Gauge Pressure Transmitter

Part Number: EJX530A-ESC4N-019DN/KU22/D3/M15/T07Model: EJX530A Gauge Pressure TransmitterManufacturer: YokogawaOverviewThe EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.The EJX530A is an In-Line Gauge Pressure Transmitter in the series.EJX530A standard features include:±0.04% Accuracy±0.1% per 15 years Stability90 ms Response TimeExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)SpecificationsMeasurement TypesPrimary Variable: Absolute PressureReference AccuracyPrimary Variable: ±0.04% of SpanStabilityPrimary Variable: ±0.1% of URL per 10 yearsResponse TimePrimary Variable: 90msRangeabilityPrimary Variable: A Capsule: 25:1B, C, or D Capsule: 50:1Burst Pressure (Absolute)A, B, or C Capsule: 4,350 psi (30 MPa)D Capsule: 19,100 psi (132 MPa)Specification ConformanceEJX-A Series: ±3s
