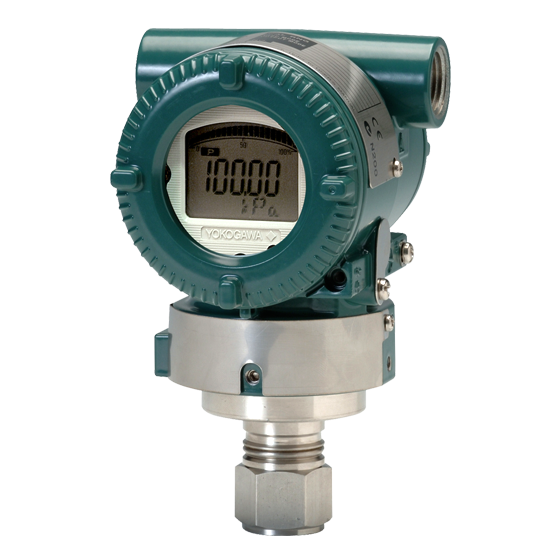

EJX530A-EDS7N-017DL/D1/KF22 | Yokogawa EJX530A Gauge Pressure Transmitter

Part Number: EJX530A-EDS7N-017DL/D1/KF22 Model and Suffix CodesModel: EJX530A - Gauge pressure transmitterOutput signal: -E - 4 to 20 mA DC Output with digital communication (HART protocol)Measurement span (capsule): D - 1 to 50 MPa (145 to 7200 psi)Wetted parts material(1): S - [Process connection] 316L SST*; [Diaphragm] Hastelloy C-276(2)*Process connections: 7 - 1/2 NPT maleN: Always N-0: Always 0Amplifier housing: 1 - Cast aluminium alloyElectrical connection: 7 - 1/2 NPT female, two electrical connections with a blind plug(4)Integral indicator: D - Digital indicatorMounting bracket: L - 316 SST 2-inch pipe mountingOptional Codes: /D1: Calibration units(5) - P calibration (psi unit)/KF22: ATEX ATEX Flameproof Approval(6) Applicable Standard: EN 60079-0, EN 60079-1, EN 60079-31 Certificate: KEMA 07ATEX0109 X II 2G, 2D Ex d IIC T6...T4 Gb, Ex tb IIIC T85?C Db IP6X Degree of protection: IP66 and IP67 Amb. Temp. (Tamb) for gas-proof: T4; 50 to 75?C ( 58 to 167?F), T5; 50 to 80?C ( 58 to 176?F), T6; 50 to 75?C ( 58 to 167?F) Max. process Temp. for gas-proof (Tp): T4; 120?C (248?F), T5; 100?C (212?F), T6; 85?C (185?F) Max. surface Temp. for dust-proof: T85?C (Tamb: 30 to 75?C, Tp: 85?C)(7)NOTE:Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Lower limit of ambient temperature is -15?C (5?F) when /HE is specified.Material of a blind plug is aluminum alloy or 304 SST.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Lower limit of ambient temperature is 15?C (5?F) when /HE is specified.The * marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156.Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.
