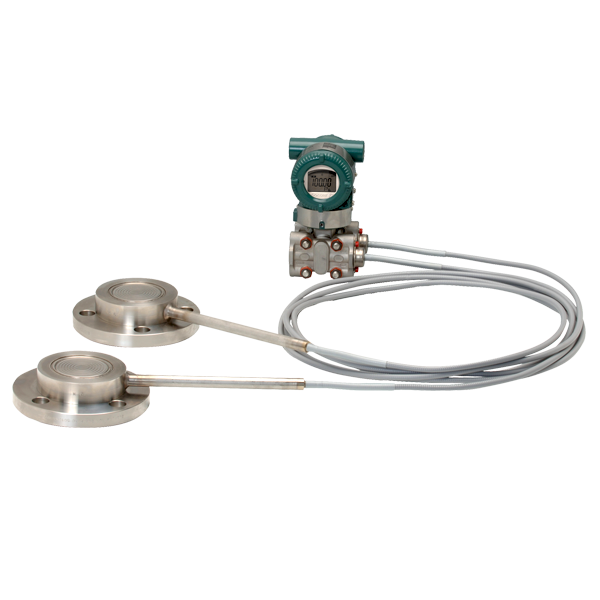

Part Number: EJX118A-EMSCG-92CDJ-WA13C1SW00-AA2A/D4/SU21/M2WModel: EJX118A Differential Pressure TransmitterManufacturer: YokogawaOrdering InformationModel: EJX118A - Diaphragm sealed differential pressure transmitterOutput signal: -E - 4 to 20 mA DC with digital communication (HART 5 protocol)Measurement span (capsule): M - 2 to 100 kPa (8 to 400 inH2O)S: Always SC: Always CCover flange bolts and nuts material: G - 316L SSTInstallation: -9 - Horizontal piping type and left side high pressureAmplifier housing: 2 - ASTM CF-8M stainless steel?Electrical connection: C - 1/2 NPT female, two electrical connections and a 316 SST blind plugIntegral indicator: D - Digital indicator?Mounting bracket: J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)Process connection style: -W - Flush typeFlange rating: A1 - ANSI class 150Process connection size (Process flange size): 3 - 3-inch (80 mm)Flange material: C - 316 SST?Gasket contact surface4: 1 - Serration (for ANSI flange with wetted parts material SW only)Wetted parts material5: SW - Diaphragm: 316L SSTOthers: 316L SSTFlushing connection ring6: 0 - NoneExtension: 0 - NoneFill fluid7: -A - For general use8Process temperature: -10 to 250°CAmbient temperature: -10 to 60°CCapillary connection: A - Side of diaphragm seal unit2: Always 2Capillary length9: A - 10 mCalibration units10: D4 - M calibration (kfg/cm² unit)IECEx Scheme: SU21IECEx Intrinsically safe and Flameproof Approval11,12Instrinsically safe Ex ia Certificate: IECEx DEK 11.0081X Applicable Standard: IEC 60079-0:2011, IEC 60079-11:2011 Ex ia IIC T4 Ga Enclosure: IP66/IP67 Amb. Temp.: -50 to 60?C (-58 to 140?F), Max. Process Temp.: 120?C (248?F) Electrical Parameters: Ui=30V, li=200mA, Pi=0.9W, Ci=27.6nF, Li=0 ?HIntrinsically safe Ex ic Certificate: IECEx DEK 13.0061X Applicable Standard: IEC 60079-0:2011, IEC 60079-11:2011 Ex ic IIC T4 Gc IP code: IP66 Amb. Temp.: -30 to 60?C (-22 to 140?F)13, Max. Process Temp.: 120?C (248?F) Electrical Parameters: Ui=30V, Ci=27.6 nF, Li=0 ?HFlameproof Certificate: IECEx CSA 07.0008 Applicable Standard: IEC 60079-0:2011, IEC60079-1:2007-4 Flameproof for Zone 1, Ex d IIC T6...T4 Gb Enclosure: IP66/IP67 Max. Process Temp.: T4;120°C (248?F), T5;100°C (212°F), T6; 85°C (185°F) Amb. Temp.: -50 to 75°C (-58 to 167°F) for T4, -50 to -80°C (-58 to 176°F) for T5, -50 to 75°C (-58 to 167°F) for T6Material certificate: M2W - Process flange, BlockNOTE:Not applicable for electrical connection code 0, 5, 7 and 9.Not applicable for output signal code G.Forged version of the material may be used.See table 3 'Gasket contact surface' on page 6.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and fill fluids can contaminate the user's process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high temperature steam (150?C [302?F] or above). When specific flushing connection ring code 1 or 2, exclusive gaskets are provided for transmitter side.Even in case where fill fluid code D (fluorinated oil) is selected, if degrease cleansing treatment or both degrease cleansing and dehydrating treatment for the wetted parts is required, specify option code K1 or K5.In case of wetted parts material code TW (Tantalum), the process temperature limit is -10 to 200?C.In case of wetted parts material code HW (Hastelloy C) and TW (Tantalum) for 2-inch process flange, specify capillary length from 1 to 5 m.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3 and D4.
