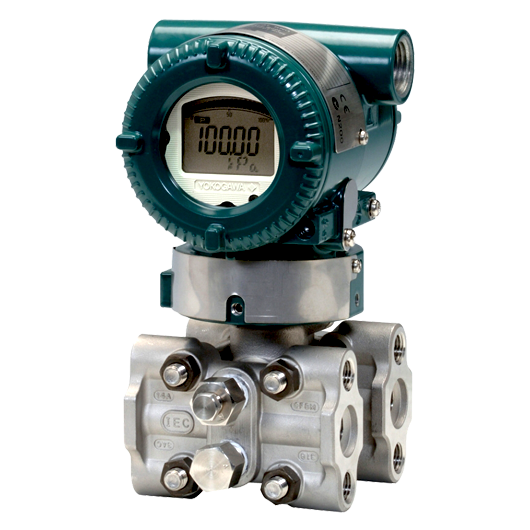

EJX110A-JMS5G-B19EN/KU22/M01 | Yokogawa EJX110A Differential Pressure Transmitter

Product Number: EJX110A-JMS5G-B19EN/KU22/M01Model and Suffix CodesModel: EJX110A - Gauge Pressure TransmitterOutput signal: -J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)Measurement span (capsule): M - 0.5 to 100 kPa (2 to 400 inH2O)Wetted parts material?: S -Cover flange and process connector: ASTM CF-8M? Capsule: Hastelloy C-276? (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SST Vent/Drain plug: 316 SSTProcess connections: *5 - without process connector (1/4 NPT female on the cover flanges)Bolts and nuts material: G - 316L SSTInstallation: -B - Bottom Process Connection, left side high pressure4Amplifier housing: 1 - Cast aluminum alloyElectrical connection: 9 - M20 female, two electrical connections and a blind plug5Integral indicator: E - Digital indicator with the range setting switch (push button)6Mounting bracket: N - NoneOptional Codes:/KU22: ATEXCombined KF22, KS21 and ATEX Intrinsically safe Ex ic7,8[ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0:2012, EN 60079-11:2012 II 3G Ex ic IIC T4 Gc, Amb. Temp.: 30 to 60?C ( 22 to 140?F)9 Ui=30 V, Ci=27.6 nF, Li=0 H/M01: Material certificate10 - Cover flange11NOTE:The " * " marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the users process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Only applicable for Wetted parts material code S.Material of a blind plug is aluminum alloy or 304 SST.Not applicable for output signal code F.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for option code /AL.Lower limit of ambient temperature is 15?C (5?F) when /HE is specified.Material traceability certification, per EN 10204 3.1B.Applicable for process connections codes 0 and 5.
