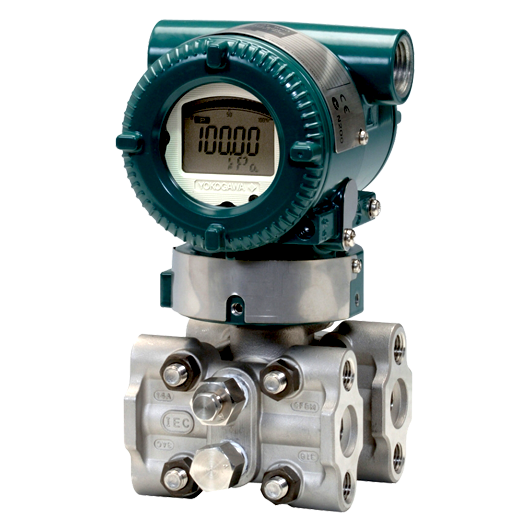

EJX110A-JMS4J-917DB | Yokogawa EJX110A Differential Pressure Transmitter

Product Number: EJX110A-JMS4J-917DBModel and Suffix CodesModel: EJX110A - Gauge Pressure TransmitterOutput signal: -J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)Measurement span (capsule): M - 0.5 to 100 kPa (2 to 400 inH2O)Wetted parts material?: S -Cover flange and process connector: ASTM CF-8M? Capsule: Hastelloy C-276? (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SST Vent/Drain plug: 316 SSTProcess connections: 4 - with 1/2 NPT female process connectorBolts and nuts material: J - B7 carbon steelInstallation: -9* - Horizontal piping and left side high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: 7 - M20 female, two electrical connections and a blind plug4Integral indicator: D - Digital indicator5Mounting bracket: B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)NOTE:The " * " marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the users process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Material of a blind plug is aluminum alloy or 304 SST.Not applicable for output signal code G.
