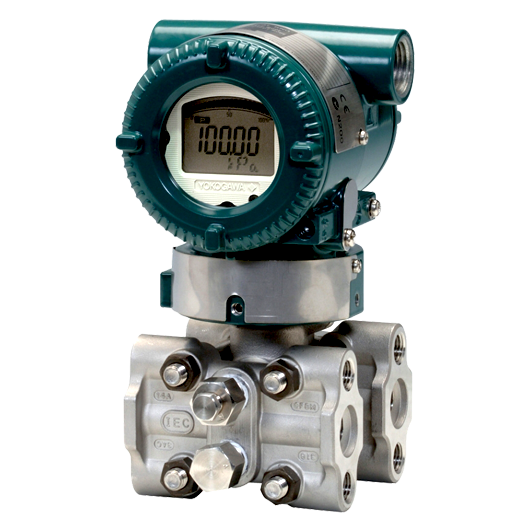

The Yokogawa EJX110A-EMS5C-92CDJ/FU1/D1/A/C2/N4 is a configuration of the EJX-A Series differential pressure transmitter designed for reliable industrial pressure measurement using Yokogawa DPharp sensor technology. Exact configuration options should be confirmed before ordering.Typical ApplicationsProcess automationChemical plantsOil & GasPower generationWater treatmentGeneral industrial pressure measurementKey FeaturesYokogawa EJX-A SeriesDifferential pressure transmitterDPharp digital sensor technologyHigh measurement accuracyFast responseIndustrial process measurementConfiguration-specific options (To Confirm) Ordering Information Model EJX110A Differential pressure transmitter Output signal -E 4 to 20 mA DC with digital communication (HART 5 protocol) Measurement span (capsule) M 0.5 to 100 kPa (2 to 400 inH2O) Wetted parts material(1) S# Cover flange and process connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SST Process connections 5 without process connector (1/4 NPT female on the cover flanges) Bolts and nuts material C 660 SST Installation -9 Horizontal piping and right side high pressure Amplifier housing 2 ASTM CF-8M stainless steel(4) Electrical connection C 1/2 NPT female, two electrical connections and a SUS316 blind plug Integral indicator D Digital indicator(5) Mounting bracket J 316 SST 2-inch pipe mounting, flat type (for horizontal piping) Factory Mutual (FM) /FU1 Combined FF1 and FS1(6)(7) Calibration units(8) /D1 P calibration (psi unit) Lightning protector /A Transmitter power supply voltage: 10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe type.)Allowable current: Max. 6000 A (1x40us), Repeating 1000 A (1x40 us) 100 timesApplicable Standards: IEC 61000-4-4, IEC 61000-4-5 Output limits and failure operation(9) /C2 NAMUR NE43 Compliant Output signal limits: 3.8 mA to 20.5 mAFailure alarm down-scale: Output status at CPU failure and hardware error is -5, 3.2 mA DC or less. Wired tag plate(10) /N4 316 SST tag plate wired onto transmitter The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.The “*” marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Not applicable for electrical connection code 0, 5, 7, 9 and A.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for option code /AL.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Applicable for vertical impulse piping type (Installation code 7) and Wetted parts material code S, H, M and T.Maximum number of characters to be engraved on N4 tag plate is 16. Not applicable when option code V1U1 is specified. Technical Specifications Specifications Details BrandYokogawa ModelEJX110A-EMS5C-92CDJ/FU1/D1/A/C2/N4 Product TypeDifferential Pressure Transmitter SeriesEJX-A Main FunctionDifferential Pressure Measurement Output SignalTo Confirm Factory Mutual (FM)FU1 Calibration UnitsD1 Lightning ProtectorA Country of OriginTo Confirm HS CodeTo Confirm WeightTo Confirm Product StatusTo Confirm FAQsWhat is this product used for?It is used for differential pressure measurement in industrial process control.Is this the complete ordering code?Yes. The full configuration code should always be quoted when requesting pricing.Is this an active Yokogawa product?The EJX110A family remains active, but this exact configuration should be confirmed.
