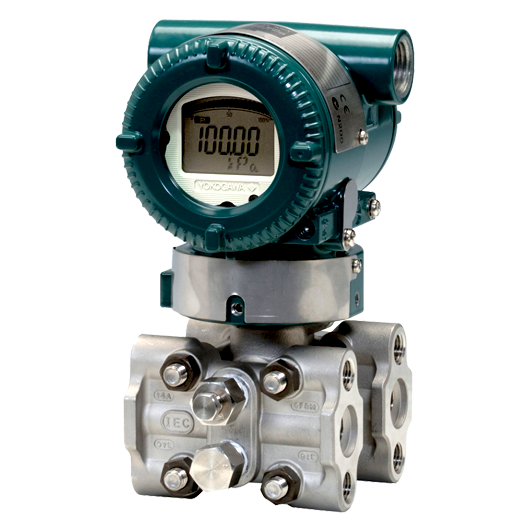

EJX110A-ELS5G-B17EM/A/D3/M01/T12

The Yokogawa EJX110A-ELS5G-B17EM/A/D3/M01/T12 is a configuration of the EJX-A Series differential pressure transmitter designed for reliable industrial pressure measurement using Yokogawa DPharp sensor technology. Exact configuration options should be confirmed before ordering.Typical ApplicationsProcess automationChemical plantsOil & GasPower generationWater treatmentGeneral industrial pressure measurementKey FeaturesYokogawa EJX-A SeriesDifferential pressure transmitterDPharp digital sensor technologyHigh measurement accuracyFast responseIndustrial process measurementConfiguration-specific options (To Confirm) Ordering Information Model EJX110A Differential pressure transmitter Output signal -E 4 to 20 mA DC with digital communication (HART 5 protocol) Measurement span (capsule) L 0.1 to 10 kPa (0.4 to 40 inH2O) (For Wetted parts material code M, H, T, A, D, B and W) Wetted parts material(1) S# Cover flange and process connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SST Process connections 5 without process connector (1/4 NPT female on the cover flanges) Bolts and nuts material G 316L SST Installation -B Bottom Process Connection, left side high pressure(3) Amplifier housing 1 Cast aluminum alloy Electrical connection 7 1/2 NPT female, two electrical connections and a blind plug(4) Integral indicator E Digital indicator with the range setting switch (push button)(5) Mounting bracket M 316 SST or SCS14A 2-inch pipe mounting (for bottom process connection type) Lightning protector /A Transmitter power supply voltage: 10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe type.)Allowable current: Max. 6000 A (1×40 µs), Repeating 1000 A (1×40 µs) 100 timesApplicable Standards: IEC 61000-4-4, IEC 61000-4-5 Calibration units(6) /D3 bar calibration (bar unit) Material certificate(7) /M01 Cover flange(8) Pressure test/ Leak test certificate(9) /T13 Test Pressure: 16 MPa(2300 psi)(10)Nitrogen(N2) Gas(11)Retention time: one minute The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.The “*” marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14A.Only applicable for Wetted parts material code S.Material of a blind plug is aluminum alloy or 304 SST.Not applicable for output signal code F.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Material traceability certification, per EN 10204 3.1B.Applicable for process connections codes 0 and 5.The unit on the certificate is always Pa unit regardless of selection of option code D1, D3 or D4.Applicable for capsule code F and L. Also applicable for capsule M, H and V when combined with Wetted Parts Material code H, M, T, A, D, B and W.Pure nitrogen gas is used for oil-prohibited use (option codes K1, K2, K5, and K6).FAQsWhat is this product used for?It is used for differential pressure measurement in industrial process control.Is this the complete ordering code?Yes. The full configuration code should always be quoted when requesting pricing.Is this an active Yokogawa product?The EJX110A family remains active, but this exact configuration should be confirmed.
