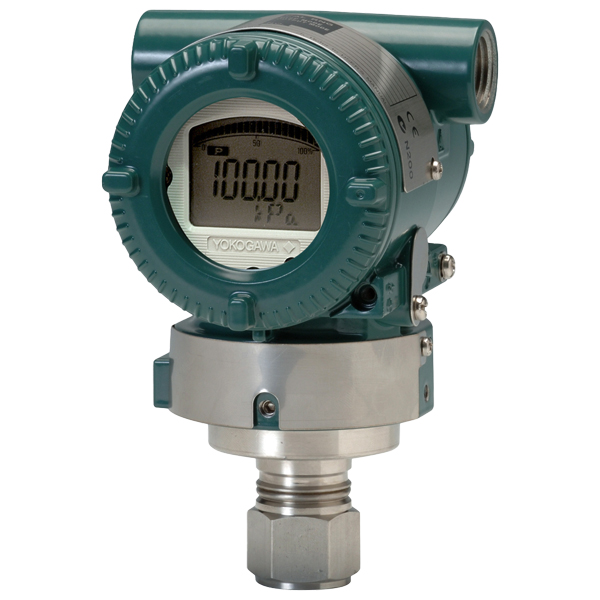

EJA530E-QBS4N-019NL | Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

Product Number: EJA530E-QBS4N-019NLOrdering InformationModel: EJA530E - Gauge pressure transmitterOutput Signal: -Q - Low Power, 1 to 5 V DC with digital communication (HART 7 protocol)Measurement span (capsule): B - 0.1 to 2 MPa (14.5 to 290 psi)Wetted parts material?: S - [Process connector] 316L SST#; [Diaphragm] Hastelloy C-276?#; [Others] 316L SST#Process connections: 4 - 1/2 NPT femaleN: Always N-0: Always 0Amplifier housing: 1 - Cast aluminum alloyElectrical connection: 9 - M20 female, two electrical connections with a blind plug?Integral indicator: N - NoneMounting bracket: L - 316 SST 2-inch pipe mountingUsers must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Material of a blind plug is aluminum alloy or 304 SST.
