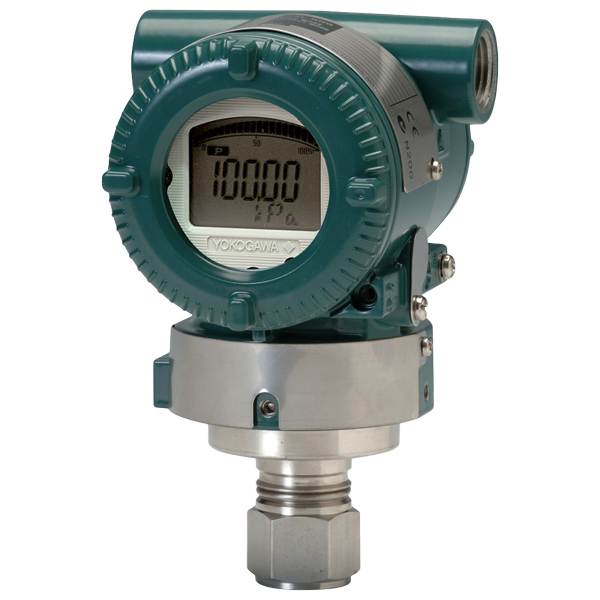

EJA530E-JDS7N-024DL/KS21 | Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

Product Number: EJA530E-JDS7N-024DL/KS21Ordering InformationModel: EJA530E - Gauge pressure transmitterOutput Signal: -J - 4 to 20 mA DC Output with digital communication (HART 5/ HART 7 protocol)?Measurement span (capsule): D - 5 to 50 MPa (720 to 7200 psi)9Wetted parts material?: S - [Process connector] 316L SST#; [Diaphragm] Hastelloy C-276?#; [Others] 316L SST#Process connections: 7 - 1/2 NPT maleN: Always N-0: Always 0Amplifier housing: 2 - ASTM CF-8M stainless steel4Electrical connection: 4 - M20 female, two electrical connections without blind plugsIntegral indicator: D - Digital indicator5Mounting bracket: L - 316 SST 2-inch pipe mountingOptional Codes: KS21 - ATEXATEX Intrinsically safe Approval6,7Applicable Standard: EN 60079-0:2012/A11:2013, EN 60079-11:2012, EN 60079-26:2007Certificate: DEKRA 11ATEX0228 XII 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85?C T100?C T120?C DbDegree of protection: IP66/IP67Amb. Temp. (Tamb) for EPL Ga: ? to 60?C (? to 140?F) Maximum Process Temp. (Tp) for EPL Ga:120?CElectrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 ?HAmb. Temp. for EPL Db: ? to 60?C 8Max. surface Temp. for EPL Db: T85?C (Tp: 80?C), T100?C (Tp: 100?C), T120?C (Tp: 120?C) HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Not applicable for electrical connection code 0, 5, 7 or 9.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and DNot applicable for output signal code Q.Lower limit of ambient temperature is ??C (5?F) when /HE is specified.5 to 70 MPa (720 to 10150 psi) when /HG is specified.
