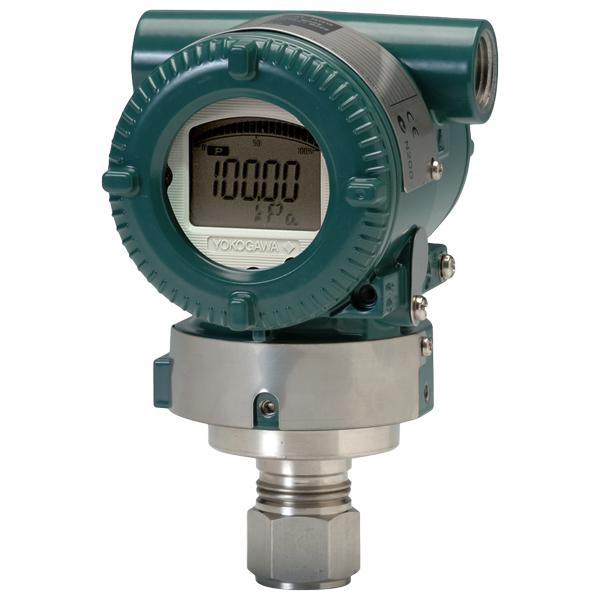

EJA530E-JCS7N-014DN/KU22 | Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

Product Number: EJA530E-JCS7N-014DN/KU22Ordering InformationModel: EJA530E - Gauge pressure transmitterOutput Signal: -J - 4 to 20 mA DC Output with digital communication (HART 5/ HART 7 protocol)?Measurement span (capsule): C - 0.5 to 10 MPa (72.5 to 1450 psi)Wetted parts material?: S - [Process connector] 316L SST#; [Diaphragm] Hastelloy C-276?#; [Others] 316L SST#Process connections: 7 - 1/2 NPT maleN: Always N-0: Always 0Amplifier housing: 1 - Cast aluminum alloyElectrical connection: 4 - M20 female, two electrical connections without blind plugsIntegral indicator: D - Digital indicator4Mounting bracket: N - NoneOptional Codes: KU22 - ATEX - Combined KF22, KS21 and ATEX Intrinsically safe Ex ic5,6HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.
