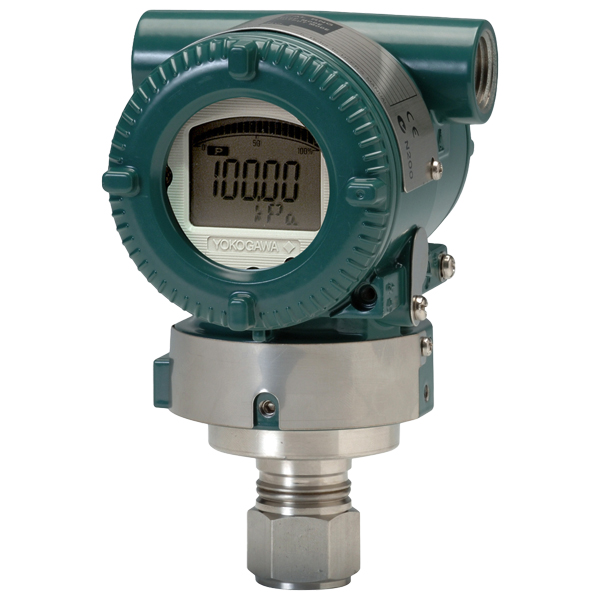

EJA530E-JCS4N-01CDL/KU22/D3 | Yokogawa EJA530E In-Line Mount Gauge Pressure Transmitter

Product Number: EJA530E-JCS4N-01CDL/KU22/D3Ordering InformationModel: EJA530E - Gauge pressure transmitterOutput Signal: -J - 4 to 20 mA DC Output with digital communication (HART 5/ HART 7 protocol)?Measurement span (capsule): C - 0.5 to 10 MPa (72.5 to 1450 psi)Wetted parts material?: S - [Process connector] 316L SST#[Diaphragm] Hastelloy C-276?#[Others] 316L SST#Process connections: 4 - 1/2 NPT maleN: Always N-0: Always 0Amplifier housing: 1 - Cast aluminum alloyElectrical connection: C - 1/2 NPT female, two electrical connections and a 316 SST blind plugIntegral indicator: D - Digital indicator4Mounting bracket: L - 316 SST 2-inch pipe mountingOptional Codes: /KU22 - ATEX - Combined KF22, KS21 and ATEX Intrinsically safe Ex ic5,6Optional Specifications: /D3 - Calibration units7 - bar calibration (bar unit)HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.
