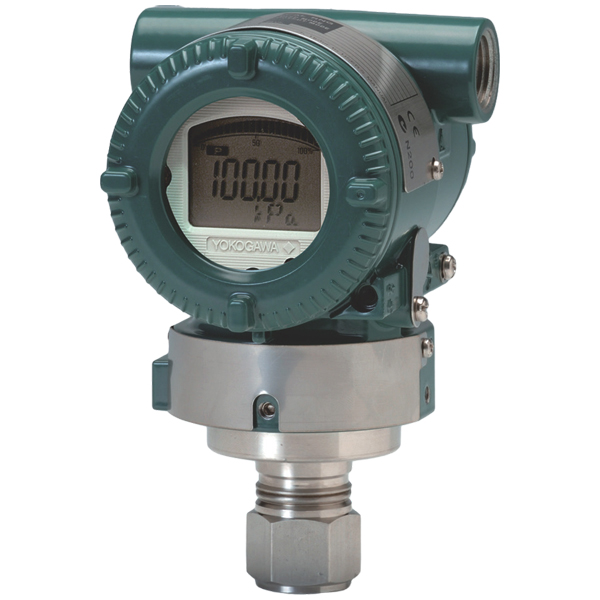

Ordering Information Model EJA510E Absolute pressure transmitter Output signal -J 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)(1) Measurement span (capsule) B 0.1 to 2 MPa (14.5 to 290 psi) Wetted parts material(2) S Process connector: 316L SST#Diaphragm: Hastelloy C-276(3)#Others: 316L SST# Process connections 7 1/2 NPT male N Always N -0 Always 0 Amplifier housing 1 Cast aluminum alloy Electrical connection C 1/2 NPT female, two electrical connections and a 316 SST blind plug Integral indicator E Digital indicator with the range setting switch (push button)(4) Mounting bracket L 316 SST 2-inch pipe mounting Factory Mutual (FM) /FU1 Combined FF1 and FS1(5)(6) Calibration unit(7) /D3 bar calibration (bar unit) Oil-prohibited use /K1 Degrease cleansing treatment Painting - Coating change /X2 Anti-corrosion coating(8)(9) HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code F.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Not applicable with color change option.Not applicable for amplifier housing code 2 and 3.The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.
