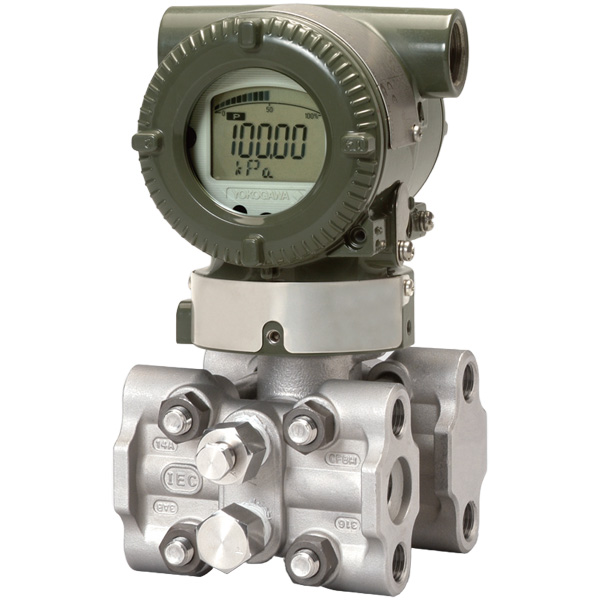

Ordering Information Model EJA430E Gauge pressure transmitter Output signal -J 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)(1) Measurement span (capsule) B 0.14 to 16 MPa (20 to 2300 psi) Wetted parts material(2) S# Cover flange and process connector: ASTM CF-8M(3)Capsule: Hastelloy C-276(4) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SST Process connections 4 with 1/2 NPT female process connector Bolts and nuts material C 660 SST Installation -7 Vertical piping, left side high pressure, and process connection down side Amplifier housing 3 Cast aluminum alloy with corrosion resistance properties(5) Electrical connection C 1/2 NPT female, two electrical connections and a 316 SST blind plug Integral indicator D Digital indicator(6) Mounting bracket N (None) ATEX /KU22 Combined KF22, KS21 and ATEX Intrinsically safe Ex ic(7)(8) [ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0:2012, EN 60079-11:2012 II 3G Ex ic IIC T4 Gc, Amb. Temp.: –30 to 60°C (–22 to 140°F)(9) Ui=30 V, Ci=27.6 nF, Li=0 µH Calibration units(10) /D3 bar calibration (bar unit) Material certificate(11) /M11 Cover flange, Process connector(12) Pressure test/ Leak test certificate(13) /T12 Test Pressure: 16 MPa (2300 psi)(14)Nitrogen(N2) Gase(15)Retention time: one minute Fluoro-rubber O-ring /HE All O-rings of amplifier housing. Lower limit of ambient temperature: –15°C (5°F) Painting - Coating change /X2 Anti-corrosion coating(16)(17) 316 SST exterior parts /HC 316 SST zero-adjustment screw and setscrews(18) The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14AHastelloy C-276 or ASTM N10276.Not applicable for electrical connection code 0, 5, 7, 9 and A. Content rate of copper in the material is 0.03% or less and content rate of iron is 0.15% or less.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Material traceability certification, per EN 10204 3.1B.Applicable for process connections code 1, 2, 3, and 4.The unit on the certificate is always Pa unit regardless of selection of option code D1, D3 or D4.Applicable for capsule code A.Applicable for capsule code B.Not applicable for amplifier housing code 2 and 3.Not applicable with color change option.316 or 316L SST. The specification is included in amplifier code 2.
