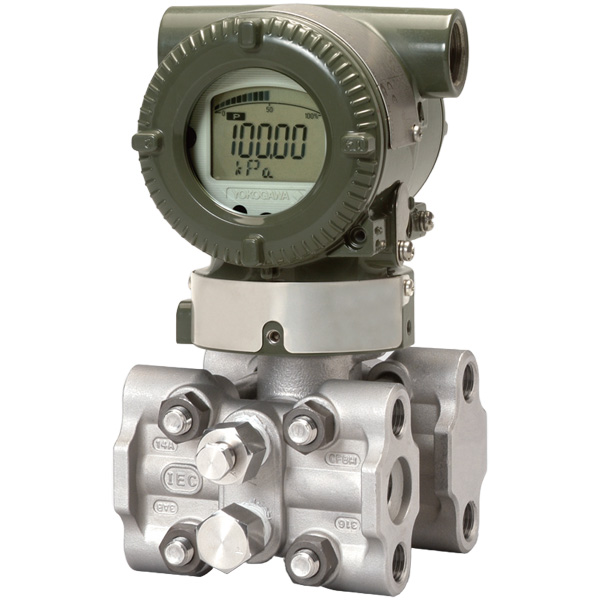

Yokogawa EJA430E Gauge Pressure Transmitter

Ordering Information Model EJA430E Gauge pressure transmitter Output signal -J 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)(1) Measurement span (capsule) A 0.03 to 3.5 MPa (4.3 to 500 psi) Wetted parts material(2) S# Cover flange and process connector: ASTM CF-8M(3)Capsule: Hastelloy C-276(4) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SST Process connections 1 with Rc1/4 female process connector Bolts and nuts material G 316L SST Installation -3 Vertical piping, right side high pressure, and process connection down side Amplifier housing 1 Cast aluminum alloy Electrical connection 0 G1/2 female, one electrical connection without blind plugs Integral indicator D Digital indicator(5) Mounting bracket D 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping) Calibration units(6) /D3 bar calibration (bar unit) ATEX /KU22 Combined KF22, KS21 and ATEX Intrinsically safe Ex ic(7)(8) [ATEX Intrinsically safe Ex ic] Applicable Standard: EN 60079-0:2012, EN 60079-11:2012 II 3G Ex ic IIC T4 Gc, Amb. Temp.: –30 to 60°C (–22 to 140°F)(9) Ui=30 V, Ci=27.6 nF, Li=0 µH The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Indicated material is equivalent to ASTM M35-2.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.
