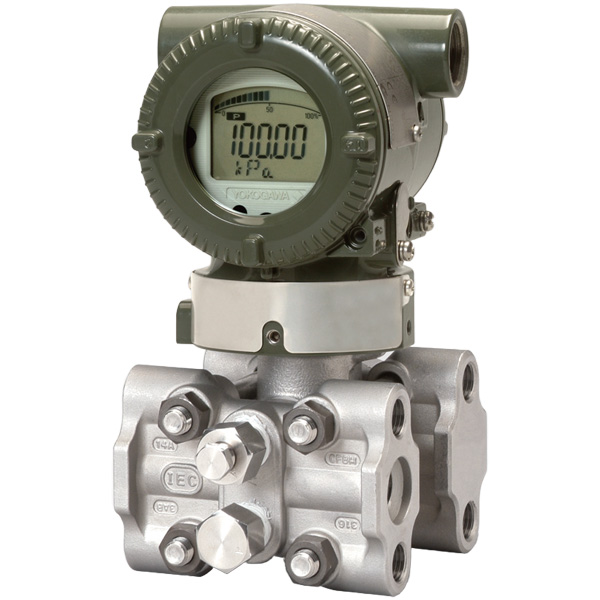

Ordering Information Model EJA430E Gauge pressure transmitter Output signal -F Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN) Measurement span (capsule) A 0.03 to 3.5 MPa (4.3 to 500 psi) Wetted parts material(1) S# Cover flange and process connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SST Process connections 5 without process connector (1/4 NPT female on the cover flanges) Bolts and nuts material J B7 carbon steel Installation -9 Horizontal piping and left side high pressure Amplifier housing 1 Cast aluminum alloy Electrical connection 4 M20 female, two electrical connections without blind plugs Integral indicator D Digital indicator(4) Mounting bracket B 304 SST 2-inch pipe mounting, flat type (for horizontal piping) /KS26 Calibration units(5) /D3 bar calibration (bar unit) Material certificate(6) /M01 Cover flange(7) The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO 15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Indicated material is equivalent to ASTM M35-2.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Material traceability certification, per EN 10204 3.1B.Applicable for process connections code 0 and 5.
