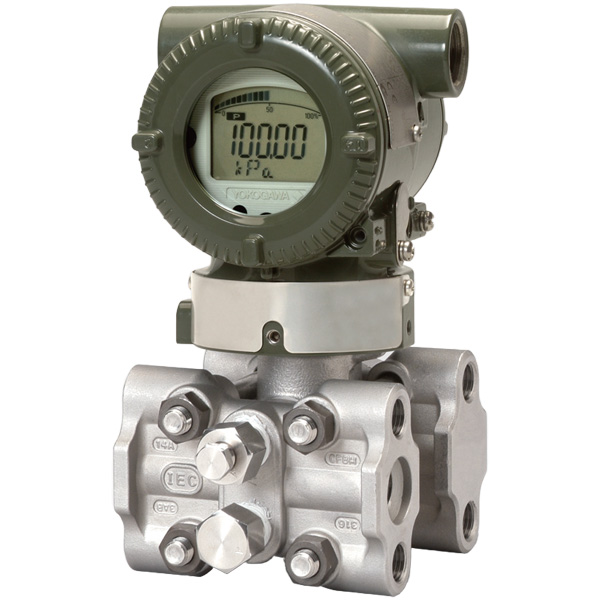

EJA430E-DAS4G-912DB | Yokogawa EJA430E Gauge Pressure Transmitter

Product Number: EJA430E-DAS4G-912DBOrdering InformationModel: EJA430E - Gauge pressure transmitterOutput signal: -D - 4 to 20 mA DC with digital communication (BRAIN protocol)Measurement span (capsule): A - 0.03 to 3.5 MPa (4.3 to 500 psi)Wetted parts material?: S - [Cover flange and process connector] ASTM CF-8M?[Capsule] Hastelloy C-276? (Diaphragm); F316L SST, 316L SST (Others)[Capsule gasket] Teflon-coated 316L SST[Vent/Drain plug] 316 SSTProcess connections: 4 - with 1/2 NPT female process connectorBolts and nuts material: G - 316L SSTInstallation: -9* - Horizontal piping and left side high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugsIntegral indicator: D - Digital indicator4Mounting bracket: B* - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)NOTES:The " * " marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the users process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Not applicable for output signal code G.
