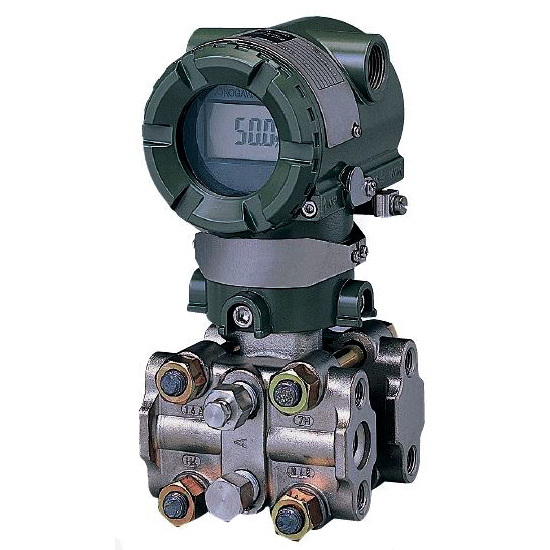

EJA430A-EAS5A-92EA | Yokogawa EJA430A Gauge Pressure Transmitter

Part Number: EJA430A-EAS5A-92EAModel and Suffix CodesModel: EJA430A - Gauge Pressure TransmitterOutput Signal: -E - 4 to 20 mA DC with digital communication (BRAIN protocol)Measurement span (capsule): A - 0.03 to 3 MPa {0.3 to 30 kgf/cm?} {4.3 to 430 psi} {0.3 to 30 bar}Wetted parts material1: S# - [Body]2 SCS14A; [Capsule] SUS316L3; [Vent plug] SUS3164Process connections: 5 - without process connector (1/4 NPT female on the cover flanges)Bolts and nuts material: A - SCM435: 3 MPa {30 kgf/cm?} (A capsule); 14 MPa {140 kgf/cm?}Installation: -9 - Horizontal impulse piping type, left side high pressure5Electrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugIntegral indicator: E - Digital indicator with the range setting switch6Mounting bracket: A - SECC Carbon steel; 2-inch pipe mounting (flat type)NOTE:The marks indicate the most typical selection for each specification.The # marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Indicates high pressure side cover flange and process connector material. Material of low pressure side cover flange (open to atmosphere) is SCS14A.Diaphragm material is Hastelloy C-276 or ASTM N10276. Other capsule wetted parts materials are SUSF316L, SUS316L or ASTM grade 316L.SUS316 or ASTM grade 316.If necessary, specify Mounting bracket code A, B or J.Not applicable for Output signal code F and G.
