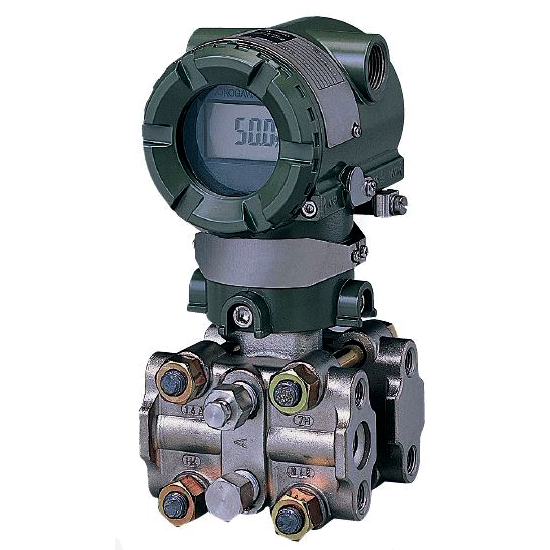

Ordering Information Model EJA430A Gauge pressure transmitter Output Signa -E 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN) Measurement span (capsule) A 0.03 to 3 MPa {0.3 to 30 kgf/cm²} {4.3 to 430 psi} {0.3 to 30 bar} Wetted parts material(1) S# [Body](2) SCS14A[Capsule] SUS316L(3)[Vent plug] SUS316(4) Process connections 4 with 1/2 NPT female process connector Bolts and nuts material A [Maximum working pressure] (A capsule) (B capsule)SCM435 3 MPa {30 kgf/cm²} 14 MPa {140 kgf/cm²} Installation -2 Vertical impulse piping type, right side high pressure, process connector upside(5) Electrical connection 2 1/2 NPT female, two electrical connections without blind plug Integral indicator D Digital indicator Mounting bracket C SECC Carbon steel 2-inch pipe mounting (L type) The ‘#’ marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Indicates high pressure side cover flange and process connector material. Material of low pressure side cover flange (open to atmosphere) is SCS14A.Diaphragm material is Hastelloy C-276 or ASTM N10276. Other capsule wetted parts materials are SUSF316L, SUS316L or ASTM grade 316L.SUS316 or ASTM grade 316.If necessary, specify Mounting bracket code C, D or K.
