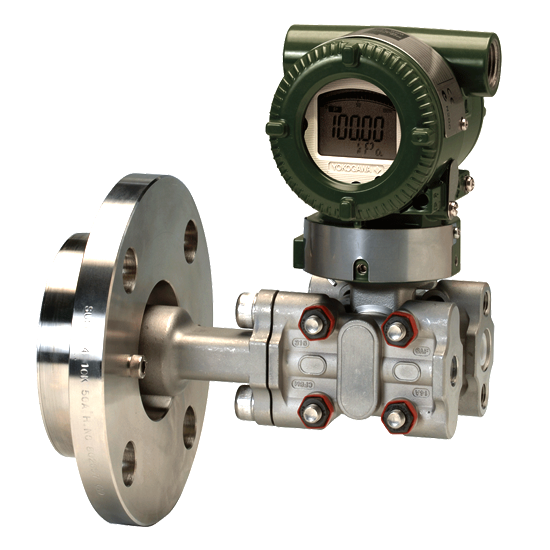

Ordering Information Model EJA210E Flange mounted differential pressure transmitter Output signal -F Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN) Measurement span (capsule) H 5 to 500kPa (20 to 2000 inH2O) Low pressure side wetted parts material S# [Cover flange and process connector] ASTM CF-8M(1)[Capsule] Hastelloy C-276(2) (Diaphragm); F316L SST, 316L SST (Others)[Capsule gasket] Teflon-coated 316L SST[Drain/Vent plug] 316 SST Low pressure side Process connections 4 with 1/2 NPT female process connector Coverflange bolts and nuts material C 660 SST Installation -9 Horizontal piping type and left side high pressure Amplifier housing 2 ASTM CF-8M stainless steel(3) Electrical connection C 1/2 NPT female, two electrical connections and a 316 SST blind plug Integral indicator D Digital indicator(4) N Always N Process connection style -W Flush type Flange rating A1 ANSI class 150 Flange size 2 2-inch (50mm) Flange material C 316 SST(5) Gasket contact surface(6) 1 Serration (for ANSI flange with wetted parts material SW only) Wetted parts material (high pressure side)(7) WW [Diaphragm] Hastelloy C-276(8)#[Others] 316 SST# Flushing connection ring(9) 0 [Ring] None[Vent/Drain plugs] -[Material] - Extension 0 None Fill fluid •-A For high temperature use (Silicone oil)[Process temperature](10) –10 to 250°C(11)(12)[Ambient temperature] –10 to 85°C ATEX /KF22 ATEX Flameproof Approval(13)(14) Applicable Standard: EN 60079-0:2012/A11:2013, EN 60079-1:2007, EN 60079-31:2014 Certificate: KEMA 07ATEX0109 X II 2G, 2D Ex d IIC T6...T4 Gb, Ex tb IIIC T85°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for gas-proof : T4; –50 to 75°C (–58 to 167°F), T5; –50 to 80°C (–58 to 176°F), T6; –50 to 75°C (–58 to 167°F) Process Temp. for gas-proof (Tp): T4; –50 to 120°C (–58 to 248°F), T5; –50 to 100°C (–58 to 212°F), T6; –50 to 85°C (–58 to 185°F) Max. surface Temp. for dust-proof: T85°C (Tamb: –30 to 75°C, Tp: –30 to 85°C)(15) Calibration units(16) /D1 P calibration (psi unit) Material certificate - For Flush type /M1W High Pressure side: Process flange, Block(17)Low Pressure side: Cover flange, Process connector Pressure test/ Leak test certificate(18)(19) /T52 [Flange rating] ANSI/JPI Class 150[Test pressure] 3 MPa (430 psi)Nitrogen (N2) Gas(20)Retention time: one minute Fluoro-rubber O-ring /HE All O-rings of amplifier housing. Lower limit of ambient temperature: –15°C (5°F) The “•” marks indicate the most typical selection for each specification.The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175 (2003). Please refer to latest standards for details.HART 5 or HART 7 is selectable. Specify upon ordering.Cast version of 316 SST. Equivalent to SCS14A.Not applicable for electrical connections code 0, 5, 7 and 9.Not applicable for output signal code G.Forged version of the material may be used.See Table 3 ‘Gasket contact surface’ on Page 5.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or ASTM N10276.When specified flushing connection ring code A or B, exclusive gasket is provided for transmitter side.Indicates the process temperature limit of high pressure side. The process temperature limit for low pressure side is –40 to 120°C except fill fluid code -D.The distance ‘S’ is extended in 30mm.In case of wetted parts material code TW (Tantalum), the process temperature limit is –10 to 200°C.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3, and D4.Applicable for Low Pressure Side Process connection code 1, 2, 3, and 4.The unit on the certificate is always MPa regardless of selection of option code D1, D3, or D4.A flushing connection ring will not be applied when conducting the pressure test or leak test.Pure nitrogen gas is used for oil-prohibited use (option code K1, K2, K5, and K6.)
