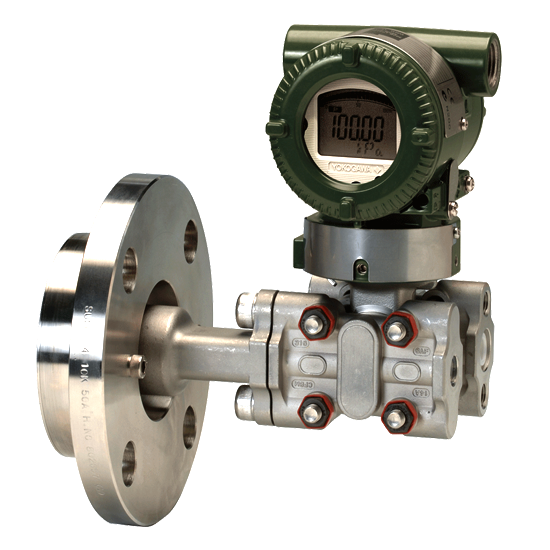

EJA210E-DHS5J-912EN-WD23A2SW00-B/D3 | Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter

Part Number: EJA210E-DHS5J-912EN-WD23A2SW00-B/D3Ordering InformationModel: EJA210E - Flange mounted differential pressure transmitterOutput Signal: -D - 4 to 20 mA DC with digital communication (BRAIN protocol)Measurement span (capsule): H - 5 to 500kPa (20 to 2000 inH2O)Low pressure side wetted parts material: S - [Cover flange and process connector] ASTM CF-8M?; [Capsule] Hastelloy C-276? (Diaphragm) F316L SST, 316L SST (Others); [Capsule gasket] Teflon-coated 316L SST; [Drain/Vent plug] 316 SSTLow pressure side Process connections: 5 - without process connector (1/4 NPT female on the cover flange)Coverflange bolts and nuts material: J - B7 carbon steelInstallation: -9 - Horizontal piping type and left side high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugsIntegral Indicator: E -Digital indicator with the range setting switch (push button)?N - always NProcess connection style: W - Flush typeFlange rating: D2 - DIN PN10/16Flange size: 3 - 3-inch (80mm)Flange material: A - JIS S25CGasket contact surface4: 2 - Flat (no serration)Wetted parts material (high pressure side)5: SW - [Diaphragm] 316L SST; [Others] 316 SSTFlushing connection ring6: 0 - NoneExtension: 0 - NoneFill fluid: -B - For general use (Silicone oil) [Pressure temperature] 40 to 120?C; [Ambient temperature] 40 to 85?CCalibration unit7: /D3 - bar calibration (bar unit)NOTE:Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276Not applicable for output signal code F.See Table 3 Gasket contact surface on Page 5.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.When specified flushing connection ring code A or B, exclusive gasket is provided for transmitter side.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3, and D4.
