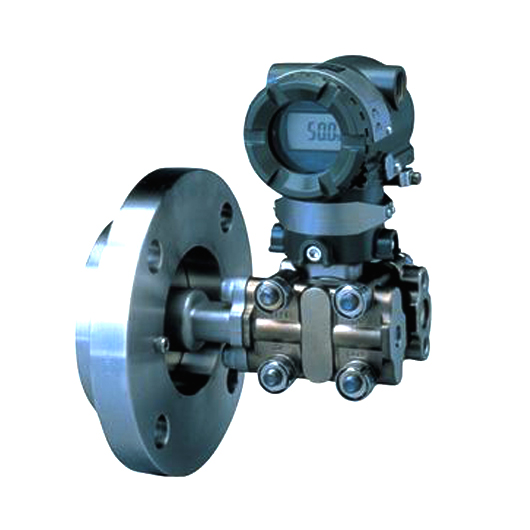

EJA210A-EMHA1F4B-97DN/CF1/T | Yokogawa EJA210A Flange Mounted Differential Pressure Transmitters

Product Number: EJA210A-EMHA1F4B-97DN/CF1/TOrdering InformationModel: EJA210A - Flange-mounted differential pressure transmitterOutput signal: -E - 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN)Measurement span (Capsule): M - 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}High pressure side (Process flange side) wetted parts material? ?: #HDiapghragm: Hastelloy C-276Others: Hastelloy C-2764Process flange range: A1 - ANSI Class 150Process flange size/material: F - 3-inch (80 mm) / SUS3165Low pressure side process connection: 4 - with 1/2 NPT female process connectorBolts and nuts material: B - SUS630Installation: -9 - Horizontal impulse piping type, left side high pressureElectrical connection: 7 - 1/2 NPT female, two electrical connections and a blind plugIntegral indicator:D - Digital indicatorN - Always NOption codes:/CF1 - Factory MutualCanadian Standards Association (CSA)6, 7, 8 Applicable standard: C22.2 No. 0, No. 0.4, No. 25, No. 30, No. 94, No. 142 Certificate: 1089598 Explosionproof for Class I, Division 1, Groups B, C and D Dustignitionproof for Class II/III, Division 1, Groups E, F and G Division2 SEALS NOT REQUIRED , Temp. Class: T4, T5, T6 Encl Type 4x Max. Process Temp.: T4; 120?C (248?F), T5; 100?C (212?F), T6; 85?C (185?F) Amb. Temp.: 40 to 80?C ( 40 to 176?F)Process Sealing Certification Dual Seal Certified by CSA to the requirement of ANSI/ISA 12.27.01 No additional sealing required. Primary seal failure annunciation: at the zero adjustment screw/T - Teflon film9 Diaphragm protection from sticky process fluid by FEP Teflon film attached with fluorinated oil.Operation range: 20 to 120?C, 0 to 2 MPa (Not applicable for vacuum service).NOTE:The * marks indicate the most typical selection for each specification. Example: EJA210A-DMWA1A5A-92NN/ .The # marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.Low pressure side wetted parts material: Cover flange; SCS14A, Process connector; SCS14A, Capsule; SUSF316L, SUS316L or ASTM grade 316L (Diaphragm; Hastelloy C-276 or ASTM N10276), Vent plug; SUS316 or ASTM grade 316Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.SUS316 or ASTM grade 316.Hastelloy C-276 or ASTM N10276.SUS316 or ASTM grade 316. Forged version may be used.Applicable for Electrical connection code 2, 7 and C (1/2 NPT female).Applicable for Output signal code D and E. For intrinsically safe approval, use the safety barrier certified by the testing laboratories (BARD-400 is not applicable).Lower limit of ambient temperature is 15?C (5?F) when /HE is specified.Teflon film can only be specified for model EJA210A.
