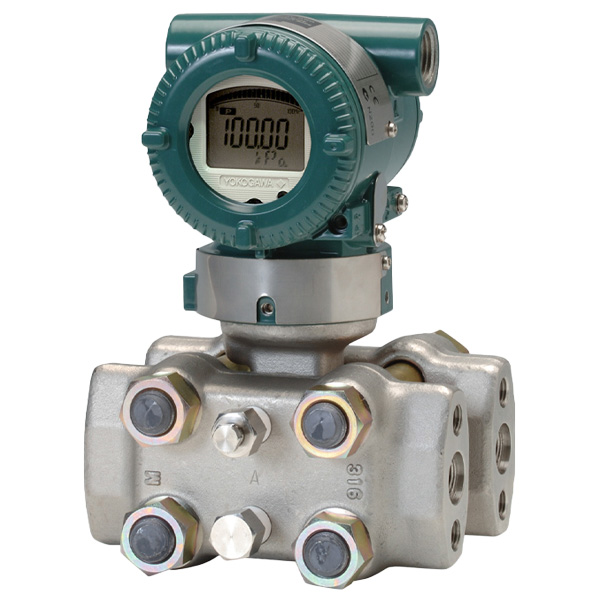

Product Number: EJA130E-JMS5G-917DJ/KF22/A/D4Model: EJA130E Differential Pressure TransmitterBrand: YokogawaCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsEJA130E features include± 0.055% Accuracy± 0.1% Stability per 10 years150 ms Response Time4,500 psi MWPExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)Model and Suffix CodesModelEJA130EDifferential pressure transmitterOutput signal-J4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)(1)Measurement span (capsule)M1 to 100 kPa (4 to 400 inH2O)Wetted parts material(2)S#Cover flange: F316 SSTProcess connector: ASTM CF-8M(3)Capsule: Hastelloy C-276(4) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SSTProcess connections*5without process connector (1/4 NPT female on the cover flanges)Bolts and nuts materialG316L SSTInstallation*-9Horizontal piping and left side high pressureAmplifier housing1Cast aluminum alloyElectrical connection71/2 NPT female, two electrical connections and a blind plug(5)Integral indicatorDDigital indicator(6)Mounting bracketJ316 SST 2-inch pipe mounting, flat type (for horizontal piping)ATEX/KF22ATEX Flameproof Approval(7) Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2007 (“2014” from August 1, 2017), EN 60079-31:2014 Certificate: KEMA 07ATEX0109 X II 2G, 2D Ex d IIC T6...T4 Gb (“Ex db IIC T6...T4 Gb” from August 1, 2017), Ex tb IIIC T85°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for gas-proof : T4; –50 to 75°C (–58 to 167°F), T5; –50 to 80°C (–58 to 176°F), T6; –50 to 75°C (–58 to 167°F) Process Temp. for gas-proof (Tp): T4; –50 to 120°C (–58 to 248°F), T5; –50 to 100°C (–58 to 212°F), T6; –50 to 85°C (–58 to 185°F) Max. surface Temp. for dust-proof: T85°C (Tamb: –30 to 75°C, Tp: –30 to 85°C)(8)Lightning protector/ATransmitter power supply voltage: 10.5 to 32 V DC (10.5 to 30 V DC for intrinsically safe type.)Allowable current: Max. 6000 A (1×40 µs), Repeating 1000 A (1×40 µs) 100 timesApplicable Standards: IEC 61000-4-4, IEC 61000-4-5Calibration units(9)/D4M calibration (kgf/cm² unit)The “*” marks indicate the most typical selection for each specification.HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Material of a blind plug; aluminum alloy for code 5 and 9, and SUS304 for code 7.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.
