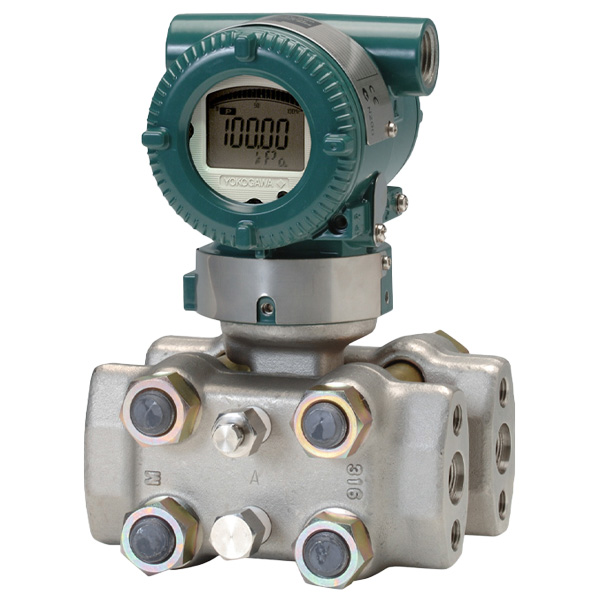

EJA130E-JHS5G-92CEJ/NS11/M01 | Yokogawa EJA130E Differential Pressure Transmitter

Product Number: EJA130E-JHS5G-92CEJ/NS11/M01EJA130E features include:± 0.055% Accuracy± 0.1% Stability per 10 years150 ms Response Time4,500 psi MWPExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)Model and Suffix CodesModel: EJA130E - Differential pressure transmitterOutput signal: -J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol) (1)Measurement span (capsule): H - 5 to 500 kPa (20 to 2000 inH2O)Wetted parts material (2): S (#)Cover flange: F316 SSTProcess connector: ASTM CF-8M (3)Capsule: Hastelloy C-276 (4) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon 316L SSTVent/Drain plug: 316 SSTProcess connections: * 5 - without process connector (1/4 NPT female on the cover flanges) Bolts and nuts material: G - 316L SSTInstallation: * -9 - Horizontal piping and left side high pressureAmplifier housing: 2 - ASTM CF-8M stainless steel (5)Electrical connection: C - 1/2 NPT female, two electrical connections and a SUS316 blind plugIntegral indicator: E - Digital indicator with the range setting switch (push button) (6)Mounting bracket: J - 316 SST 2-inch pipe mounting, flat type (for horizontal piping)/NS11Material certificate: /M01 (7) - Cover flange (8)The “ * ” marks indicate the most typical selection for each specification.The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR0175/ISO15156. Please refer to the latest standards for details. Selected materials also conform to NACE MR0103.HART 5 or HART 7 is selectable. Specify upon ordering.Users must consider the characteristics of selected wetted parts material and influence of process fluids. Specifying inappropriate materials has the potential to cause serious damage to human body and plant facilities resulted from an unexpected leak of the corrosive process fluids.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Not applicable for electrical connection code 0, 5, 7 and 9.Not applicable for output signal code F.Material traceability certification, per EN 10204 3.1B.Applicable for process connections codes 5.
