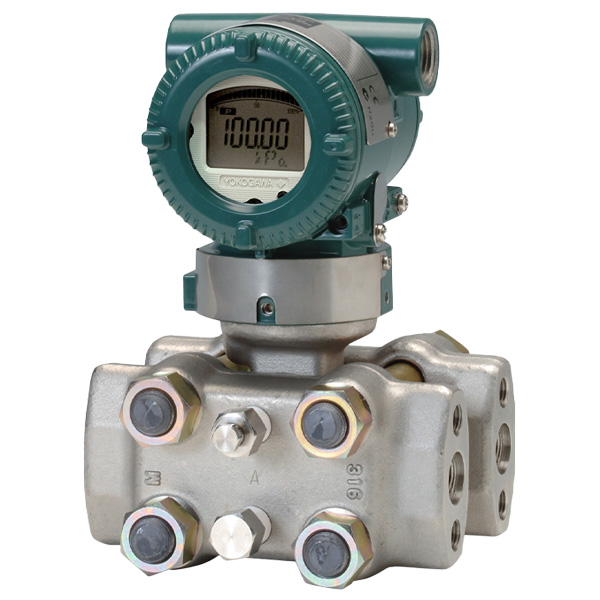

Product Number: EJA130E-FMS5G-919DB/KS26/X2/D4/M01/T09Model: EJA130E Differential Pressure TransmitterBrand: YokogawaCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsEJA130E features include± 0.055% Accuracy± 0.1% Stability per 10 years150 ms Response Time4,500 psi MWPExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)Model and Suffix CodesModelEJA130EDifferential pressure transmitterOutput signal-FDigital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN)Measurement span (capsule)M1 to 100 kPa (4 to 400 inH2O)Wetted parts material(1)S#Cover flange: F316 SSTProcess connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SSTProcess connections*5without process connector (1/4 NPT female on the cover flanges)Bolts and nuts materialG316L SSTInstallation*-9Horizontal piping and left side high pressureAmplifier housing1Cast aluminum alloyElectrical connection9M20 female, two electrical connections and a blind plug(4)Integral indicatorDDigital indicator(5)Mounting bracket*B304 SST 2-inch pipe mounting, flat type (for horizontal piping)/KS26Painting/X2Coating change: Anti-corrosion coating(6) Calibration units(7)/D4M calibration (kgf/cm2 unit)Material certificate(8) /M01Cover flange(9)Pressure test/Leak test certificate(10)/T09Test Pressure: 32 MPa(4500 psi)Nitrogen(N2) Gas or Water(11)Retention time: one minuteThe “*” marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Material of a blind plug; aluminum alloy for code 5 and 9, and SUS304 for code 7.Not applicable for output signal code G.Not applicable with color change option. Not applicable for amplifier housing code 2.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Material traceability certification, per EN 10204 3.1B.Applicable for process connections codes 5.The unit on the certificate is always Pa unit regardless of selection of option code D1, D3 or D4.Pure nitrogen gas or pure water is used for oil-prohibited use (option codes K1, K2, K5, and K6).
