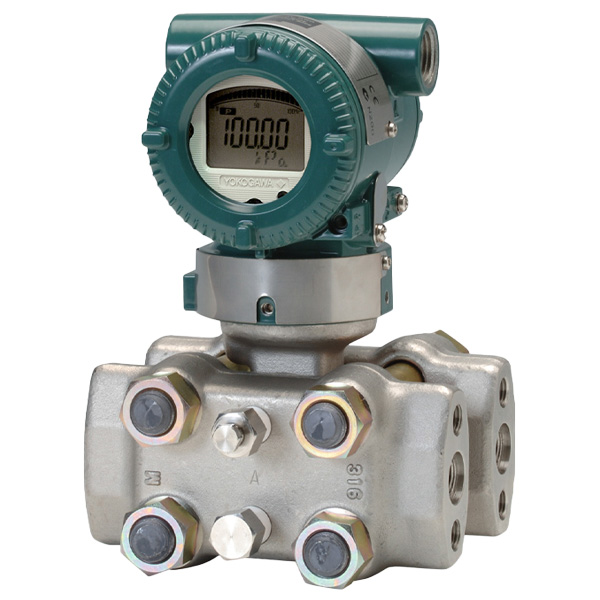

Product Number: EJA130E-FHS4C-72CDK/KF22/D3/M11/T09/HEModel: EJA130E Differential Pressure TransmitterBrand: YokogawaCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsEJA130E features include± 0.055% Accuracy± 0.1% Stability per 10 years150 ms Response Time4,500 psi MWPExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)Model and Suffix CodesModelEJA130EDifferential pressure transmitterOutput signal-FDigital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN)Measurement span (capsule)H5 to 500 kPa (20 to 2000 inH2O)Wetted parts material(1)S#Cover flange: F316 SSTProcess connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SSTProcess connections4with 1/2 NPT female process connector(4)Bolts and nuts materialC660 SSTInstallation-7Vertical piping, left side high pressure, and process connection downsideAmplifier housing2ASTM CF-8M stainless steel(5)Electrical connectionC1/2 NPT female, two electrical connections and a SUS316 blind plugIntegral indicatorDDigital indicator(6)Mounting bracketK316 SST or SCS14A 2-inch pipe mounting, L type (for vertical piping)ATEX/KF22ATEX Flameproof Approval(7) Applicable Standard: EN 60079-0:2012+A11:2013, EN 60079-1:2007 (“2014” from August 1, 2017), EN 60079-31:2014 Certificate: KEMA 07ATEX0109 X II 2G, 2D Ex d IIC T6...T4 Gb (“Ex db IIC T6...T4 Gb” from August 1, 2017), Ex tb IIIC T85°C Db Degree of protection: IP66/IP67 Amb. Temp. (Tamb) for gas-proof : T4; –50 to 75°C (–58 to 167°F), T5; –50 to 80°C (–58 to 176°F), T6; –50 to 75°C (–58 to 167°F) Process Temp. for gas-proof (Tp): T4; –50 to 120°C (–58 to 248°F), T5; –50 to 100°C (–58 to 212°F), T6; –50 to 85°C (–58 to 185°F) Max. surface Temp. for dust-proof: T85°C (Tamb: –30 to 75°C, Tp: –30 to 85°C)(8)Calibration units(9)/D3bar calibration (bar unit)Material certificate(10)/M11Cover flange, Process connector(11)Pressure test/ Leak test certificate(12)/T09Test Pressure: 32 MPa(4500 psi)Nitrogen(N2) Gas or Water(13)Retention time: one minuteFluoro-rubber O-ring/HEAll O-rings of amplifier housing. Lower limit of ambient temperature: –15°C (5°F)The “*” marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Lower limit of ambient and process temperature is -15°C.Not applicable for electrical connection code 0, 5, 7 and 9.Not applicable for output signal code G.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.Material traceability certification, per EN 10204 3.1B.Applicable for process connections codes 3 and 4.The unit on the certificate is always Pa unit regardless of selection of option code D1, D3 or D4.Pure nitrogen gas or pure water is used for oil-prohibited use (option codes K1, K2, K5, and K6).
