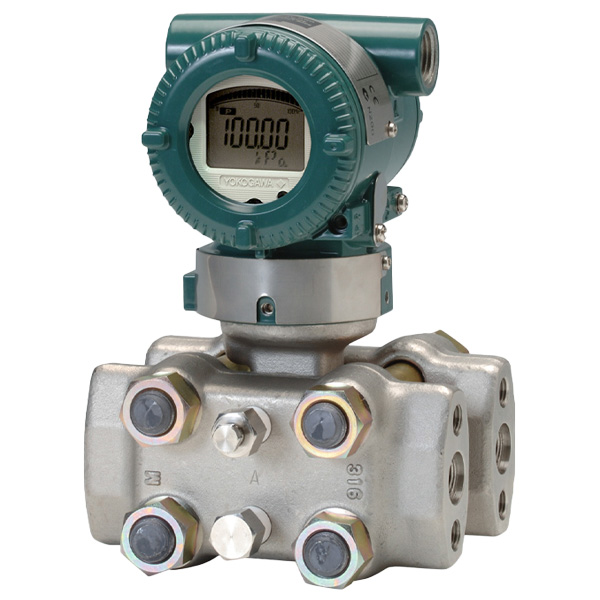

Product Number: EJA130E-DMS4G-712DD/D4/HEModel: EJA130E Differential Pressure TransmitterBrand: YokogawaCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsEJA130E features include± 0.055% Accuracy± 0.1% Stability per 10 years150 ms Response Time4,500 psi MWPExida and TUV SIL 2/3 CertifiedLocal Parameter Setting (LPS)Model and Suffix CodesModelEJA130EDifferential pressure transmitterOutput signal-D4 to 20 mA DC with digital communication (BRAIN protocol)Measurement span (capsule)M1 to 100 kPa (4 to 400 inH2O)Wetted parts material(1)S#Cover flange: F316 SSTProcess connector: ASTM CF-8M(2)Capsule: Hastelloy C-276(3) (Diaphragm); F316L SST, 316L SST (Others)Capsule gasket: Teflon-coated 316L SSTVent/Drain plug: 316 SSTProcess connections4with 1/2 NPT female process connector(4)Bolts and nuts materialG316L SSTInstallation-7Vertical piping, left side high pressure, and process connection downsideAmplifier housing1Cast aluminum alloyElectrical connection21/2 NPT female, two electrical connections without blind plugsIntegral indicatorDDigital indicator(5)Mounting bracketD304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)Calibration units(6)/D4M calibration (kgf/cm² unit)Fluoro-rubber O-ring/HEAll O-rings of amplifier housing. Lower limit of ambient temperature: –15°C (5°F)The “*” marks indicate the most typical selection for each specification.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Cast version of 316 SST. Equivalent to SCS14A.Hastelloy C-276 or ASTM N10276.Lower limit of ambient and process temperature is -15°C.Not applicable for output signal code G.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option codes D1, D3, and D4.
