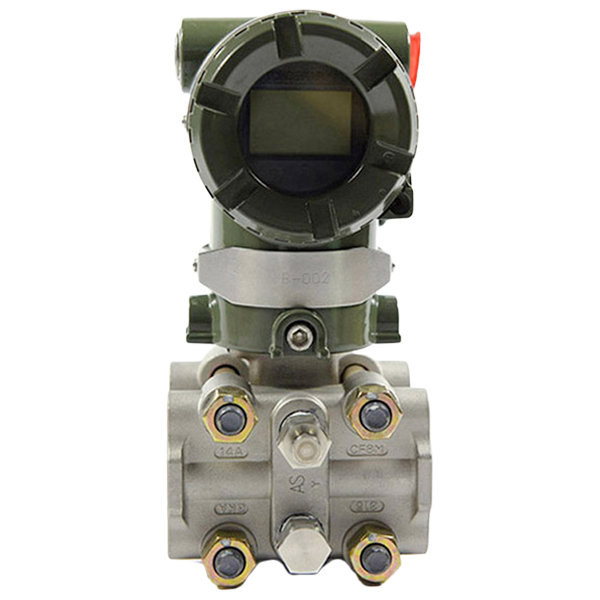

EJA120A-FES3A-94DB | Yokogawa EJA120A Differential Pressure Transmitter

Part Number: EJA120A-FES3A-94DBModel: Differential Pressure TransmitterManufacturer: YokogawaOrdering InformationModel: EJA120A - Differential pressure transmitter (for draft application)(1)Output Signal: -F - Digital communication (FOUNDATION Fieldbus protocol)Measurement span (capsule): E 0.1 to 1 kPa10 to 100 mmH2OWetted Parts Material: SBody(2): SCS14ACapsule: SUS316L(3)Vent plug: SUS316Process Connection: 3 - with 1/4 NPT female process connectorBolts and Nuts Material: A - SCM435Maximum working pressure: 50 kPa {0.5 kgf/cm²}Installation: -9 - Horizontal impulse piping type, left side high pressureElectrical Connection: 4 - M20 female, two electrical connections without blind plugIntegral Indicator: D - Digital indicatorMounting Bracket: B - SUS304 2-inch pipe mounting (flat type)Refer to IM 01C22T02-01E for Fieldbus communication.Body; Material of cover flanges and process connectors.Diaphragm; Hastelloy C-276. Other wetted parts materials; SUS316L.
