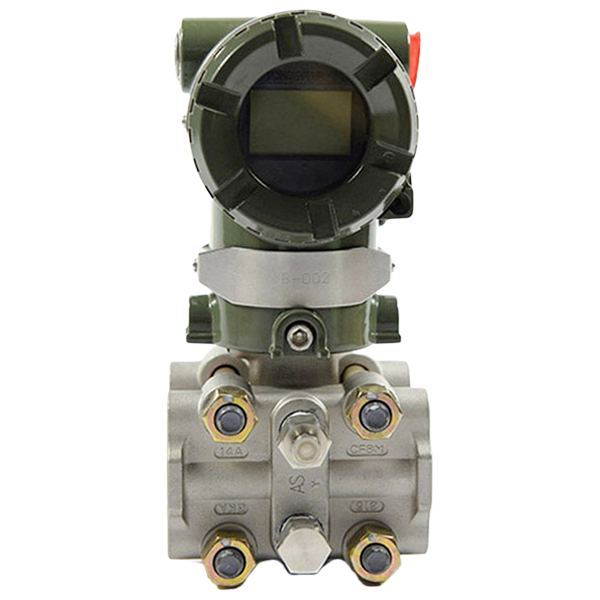

EJA120A-EES5B-99DA/KS2/X1/D4/M01/T04 | Yokogawa EJA120A Differential Pressure Transmitter

Part Number: EJA120A-EES5B-99DA/KS2/X1/D4/M01/T04Model: Differential Pressure TransmitterManufacturer: YokogawaOrdering InformationModel: EJA120A - Differential pressure transmitter (for draft application)(1)Output Signal: -E(1) - 4 to 20 mA DC with digital communication (HART protocol) Measurement span (capsule): E 0.1 to 1 kPa10 to 100 mmH2OWetted Parts Material: SBody(2): SCS14ACapsule: SUS316L(3)Vent plug: SUS316Process Connection: 5 - without process connector (1/4 NPT female on the cover flanges)Bolts and Nuts Material: B - SUS630Maximum working pressure: 50 kPa {0.5 kgf/cm²}Installation: -9 - Horizontal impulse piping type, left side high pressureElectrical Connection: 9 - M20 female, two electrical connections and a blind plugIntegral Indicator: D - Digital indicatorMounting Bracket: A - SECC Carbon steel 2-inch pipe mounting (flat type)CENELEC ATEX: /KS2CENELEC ATEX (KEMA) Intrinsically safe Approval(4) Certificate: KEMA 02ATEX1030X II 1G EEx ia IIC T4, Amb. Temp.: –40 to 60°C (–40 to 140°F) Ui=30 V, Ii=165 mA, Pi=0.9 W, Ci=22.5 nF, Li=730 µHPainting | Coating change: /X1 - Epoxy resin-baked coatingCalibration units: /D4 - M calibration (kgf/cm² unit )Mill Certificate: /M01 - Cover flange, Process connectorPressure test/Leak test Certificate: /T04 Test Pressure: 50 kPa{0.5 kgf/cm²}Nitrogen(N2) Gas; Retention time: 10 minutesRefer to IM 01C22T01-01E for HART Protocol version.Body; Material of cover flanges and process connectors.Diaphragm; Hastelloy C-276. Other wetted parts materials; SUS316L.Applicable for Electrical connection code 2, 4, 7 and 9 (1/2 NPT and M20 female).
