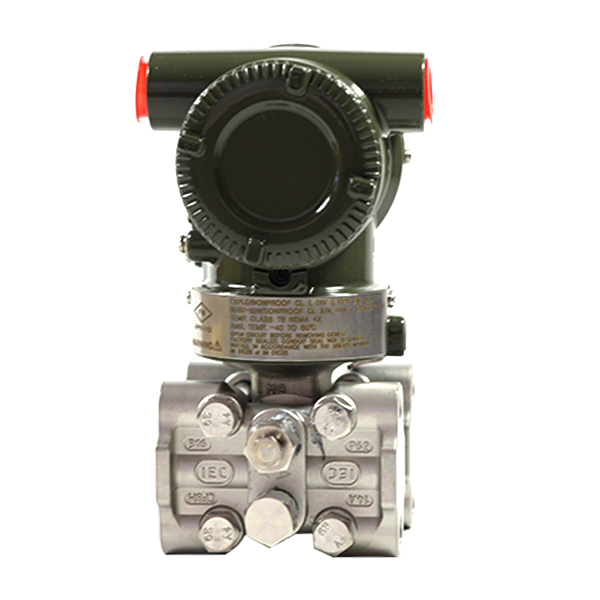

DescriptionThe EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.EJA118E features include:±0.2% Accuracy200 ms Response TimeExida and TUV SIL2 / SIL3 CertifiedLocal Parameter Setting (LPS)10-segment Signal CharacterizerActive Capillary Fill Fluid Density CompensationOrdering InformationModel: EJA118E - Diaphragm sealed differential pressure transmitterOutput signal: -J - 4 to mA DC with digital communication (HART 5/HART 7 protocol)(1) Measurement span (capsule): M - 2.5 to 100 kPa (10 to 400 inH2O)S - Always SC - Always CCover flange bolts and nuts material: G - 316L SSTInstallation: -9 - Horizontal piping type and left high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: 4 - M20 female, two electrical connections without blind plugsIntegral indicator: D - Digital indicator(2)Mounting bracket: B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)The "*" marks indicate the most typical selection for each specificationHART 5 or HART 7 is selectable. Not applicable for electrical connection code 0, 5, 7, 9 and A.
