YokogawaOrdering InformationModel: EJA118E - Diaphragm sealed differential pressure transmitterOutput signal: J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)?Measurement span (capsule): M - 2.5 to 100 kPa (10 to 400 inH2O)S: Always SC: Always CCoverflange bolts and nuts material: G - 316L SSTInstallation: -9 - Horizontal piping type and left side high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: *2 - 1/2 NPT female, two electrical connections wit

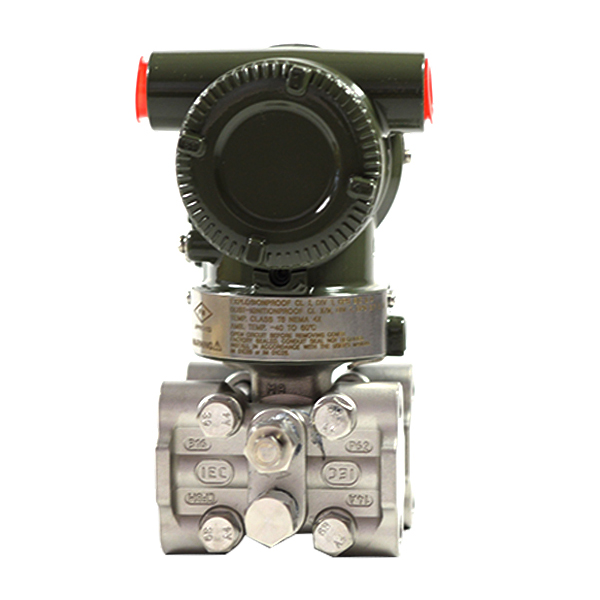

Part Number: EJA118E-JMSCG-912DB-WJ22B1SW00-AA26/X2Model: Diaphragm sealed differential pressure transmitterManufacturer: YokogawaOrdering InformationModel: EJA118E - Diaphragm sealed differential pressure transmitterOutput signal: J - 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)?Measurement span (capsule): M - 2.5 to 100 kPa (10 to 400 inH2O)S: Always SC: Always CCoverflange bolts and nuts material: G - 316L SSTInstallation: -9 - Horizontal piping type and left side high pressureAmplifier housing: 1 - Cast aluminum alloyElectrical connection: *2 - 1/2 NPT female, two electrical connections without blind plugsIntegral Indicator: D - Digital indicator?Mounting bracket: B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)HART 5 or HART 7 is selectable. Specify upon ordering.Not applicable for output signal code G.
