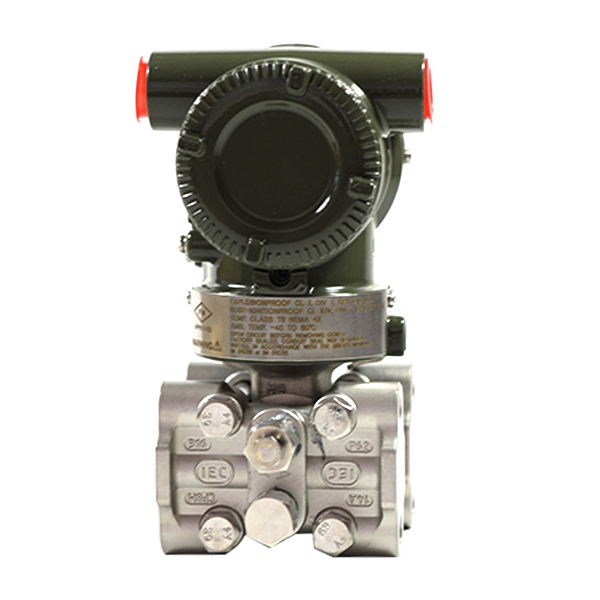

DescriptionThe EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.EJA118E features include:±0.2% Accuracy200 ms Response TimeExida and TUV SIL2 / SIL3 CertifiedLocal Parameter Setting (LPS)10-segment Signal CharacterizerActive Capillary Fill Fluid Density CompensationModel and Suffix Codes Model EJA118E Diaphragm sealed differential pressure transmitter Output signal -J 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)(1) Measurement span (capsule) M 2.5 to 100 kPa (10 to 400 inH2O) S Always S C Always C Coverflange bolts and nuts material C 660 SST Installation -9 Horizontal piping type and left side high pressure Amplifier housing 2 ASTM CF-8M stainless steel(2) Electrical connection D M20 female, two electrical connections and a 316 SST blind plug Integral indicator D Digital indicator(3) Mounting bracket N None Process connection style -W Flush type Flange rating A1 ANSI class 150 Process connection size (Process flange size) 3 3-inch (80 mm) Flange material C 316 SST(4) Gasket contact surface(5) 2 Flat (no serration) Wetted parts material(6) HW Diaphragm: Hastelloy C-276(7)Others: Hastelloy C-276(7) Flushing connection ring(8) *0 Ring: NoneVent/Drain plugs: -Material: - Extension 0 None Fill fluid(9) *-A For general use (silicone oil)(10)Process temperature: –10 to 250°CAmbient temperature: –10 to 60°C Capillary connection A Side of diaphragm seal unit 2 Always 2 Capillary length(11) A 10 m ATEX /KS21 ATEX Intrinsically safe Approval(12)(13)Applicable Standard: EN 60079-0, EN 60079-11Certificate: DEKRA 11ATEX0228 XII 1G, 2D Ex ia IIC T4 Ga, Ex ia IIIC T85°C T100°C T120°C DbDegree of protection: IP66/IP67Amb. Temp. (Tamb) for EPL Ga: –50 to 60°C (–58 to 140°F)Maximum Process Temp. (Tp) for EPL Ga:120°CElectrical data: Ui=30 V, Ii=200 mA, Pi=0.9 W, Ci=27.6 nF, Li=0 µHAmb. Temp. for EPL Db: –30 to 60°C(14)Max. surface Temp. for EPL Db: T85°C (Tp: 80°C), T100°C (Tp: 100°C), T120°C (Tp: 120°C) Calibration units(15)(16) /D4 M calibration (kgf/cm² unit) Pressure test/ Leak test certificate(17)(18) /T52 [Flange rating] ANSI/JPI Class 150[Test pressure] 3 MPa (430 psi) The “*” marks indicate the most typical selection for each specification HART 5 or HART 7 is selectable. Specify upon ordering Not applicable for electrical connection code 0, 5, 7 and 9.Not applicable for output signal code G.Forged version of the material may be used.See table 3 ‘Gasket contact surface’ on page 6.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user’s process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and hightemperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Hastelloy C-276 or N10276.When specified flushing connection ring code 1 or 2, exclusive gaskets are provided for transmitter side.Even in case where fill fluid code D (fluorinated oil) is selected, if degrease cleansing treatment or both degrease cleansing and dehydrating treatment for the wetted parts is required, specify option code K1 or K5.In case of wetted parts material code TW (Tantalum), the process temperature limit is –10 to 200°C.In case of wetted parts material code HW (Hastelloy C) and TW (Tantalum) for 2-inch process flange, specify capillary length from 1 to 5m.Applicable for Electrical connection code 2, 4, 7, 9, C and D.Not applicable for output signal code Q.Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3, and D4.Not applicable for Fill fluid code 1, 2, or 4.The unit on the certificate is always MPa regardless of selection of option code D1, D3, or D4.A flushing connection ring will not be applied when conducting the pressure test or leak test.
