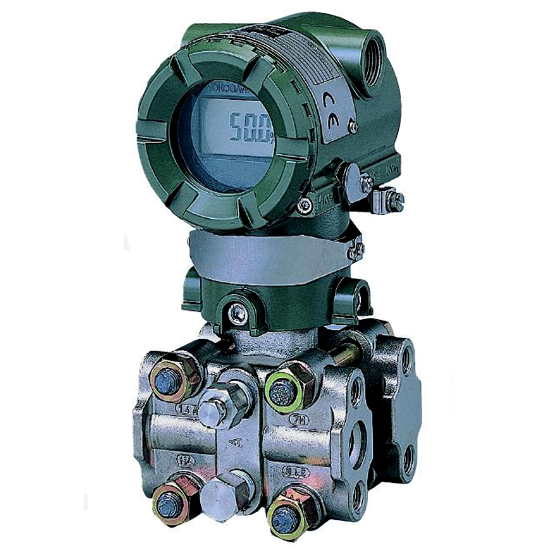

EJA110A-EMS5A-92DA/D3 | Yokogawa EJA110A Differential Pressure Transmitter [DISCONTINUED AND OUT OF STOCK]

-THIS PRODUCT HAS BEEN DISCOUNTINUED AND OUT OF STOCK-Part Number: EJA110A-EMS5A-92DA/D3Model and Suffix CodesModel: EJA110A - Differential pressure transmitterOutput Signal: -E - 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00E)Measurement span (capsule): M - 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}Wetted parts material1: S# - [Body]2 SCS14A; [Capsule] SUS316L3; [Vent plug] SUS3164Process connections: *5 - without process connector (1/4 NPT female on the cover flanges)Bolts and nuts material: A - SCM435; [Maximum working pressure] 16 MPa {160 kgf/cm2}5Installation: *-9 - Horizontal impulse piping type, left side high pressure6Electrical connection: *2 - 1/2 NPT female, two electrical connections without blind plugIntegral indicator: D - Digital indicatorMounting bracket: *A - SECC Carbon steel; 2-inch pipe mounting (flat type)Calibration Units7: /D3 - bar calibration (bar unit)NOTE:The '*' marks indicate the most typical selection for each specification.The '#' marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam. Contact Yokogawa for detailed information of the wetted parts material.Indicates material of cover flanges and process connectors.Diaphragm material is Hastelloy C-276 or ASTM N10276. Other capsule wetted parts materials are SUSF316L, SUS316L or ASTM grade 316L.SUS316 or ASTM grade 316.For Capsule code L when combined with Wetted parts material code H, M, T, A, D, and B, the maximum working pressure is 3.5 MPa {35 kgf/cm2}.If necessary, specify Mounting bracket code A, B or J.The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by Option code D1, D3, and D4.
