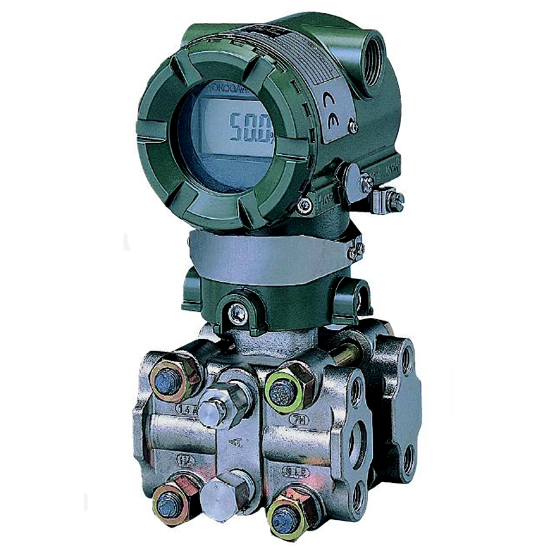

EJA110A-DMS2A-27NC/CU1 | Yokogawa EJA110A Differential Pressure Transmitter [DISCONTINUED AND OUT OF STOCK]

-THIS PRODUCT HAS BEEN DISCOUNTINUED AND OUT OF STOCK-Part Number: EJA110A-DMS2A-27NC/CU1Model: EJA110A Differential Pressure TransmitterBrand: YokogawaCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsOrdering Information Model EJA110A Differential pressure transmitter Output Signal -D 4 to 20 mA DC with digital communication (BRAIN protocol) Measurement span(capsule) M 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar} Wetted parts material(1) S# [Body](2) SCS14A[Capsule] SUS316L(3)[Vent plug] SUS316(4) Process connections 2 with Rc1/2 female process connector Bolts and nuts materia A SCM435[Maximum working pressure]16 MPa {160 kgf/cm²}(5) Installation -2 Vertical impulse piping type, right side high pressure, process connector upside(6) Electrical connection 7 1/2 NPT female, two electrical connections and a blind plug Integral indicator N (None) Mounting bracket C SECC Carbon steel 2-inch pipe mounting (L type) Canadian Standards Association (CSA) /CU1 Combined CF1 and CS1(7)(8)(9) The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.Indicates material of cover flanges and process connectors.Diaphragm material is Hastelloy C-276 or ASTM N10276. Other capsule wetted parts materials are SUSF316L, SUS316L or ASTM grade 316L.SUS316 or ASTM grade 316.For Capsule code L when combined with Wetted parts material code H, M, T, A, D, and B, the maximum working pressure is 3.5 MPa {35 kgf/cm²}.If necessary, specify Mounting bracket code C, D or K.Applicable for Electrical connection code 2, 7 and C (1/2 NPT female).Applicable for Output signal code D and E. For intrinsically safe approval, use the safety barrier certified by the testing laboratories (BARD-400 is not applicable).Lower limit of ambient temperature is –15°C (5°F) when /HE is specified.
