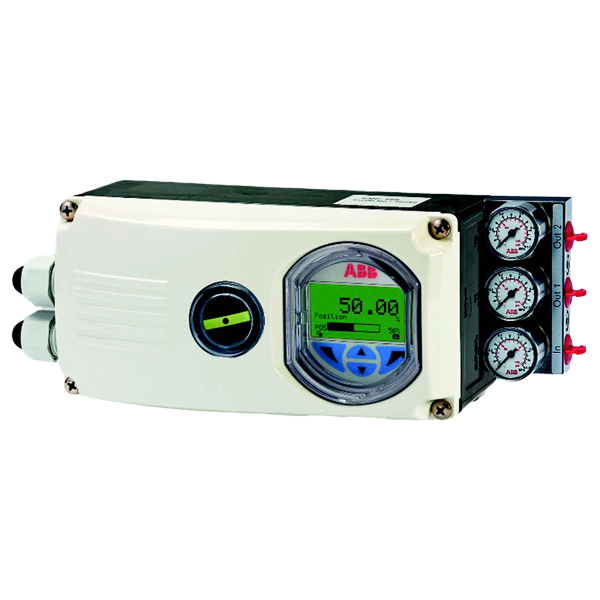

EDP300A1H2F2CA1D1H1M5T1 | ABB PositionMaster EDP300 Digital Positioner

Ordering Information Base Model EDP300 PositionMaster EDP300 digital positioner Explosion Protection Certification A1 ATEX II 1G Ex ia IIC / II 1D Ex ia IIIC Input Signal / Communication Port H HART digital communication and 4 ... 20 mA Pneumatic Output Type 2 Double acting Safe Position F Fail-freeze Air Pipe Connection 2¹ Thread 1/4-18 NPT female Cable Conduits C Thread M20 x 1.5 female Option Module Slot 1 A1 Analog feedback output Position Indicator D1 Visual Indicator, integrated into cover Limit Switches H1 Stainless steel Documentation Language M5 English Additional TAG Plate T1 Stainless steel 18.5 mm x 65 mm (0.73 in. x 2.5 in.) Needed for FM / CSA certification
