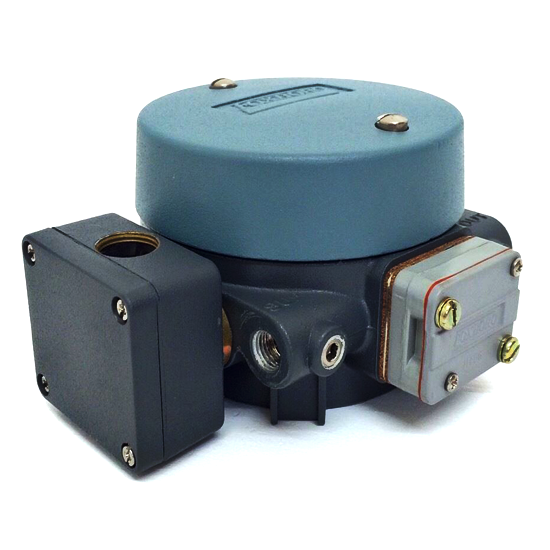

E69F-TI2/CS-E/FD-A | Foxboro Current-to-Pneumatic Signal Converter Field-Mounted [DISCONTINUED & OUT OF STOCK]

DISCONTINUED & OUT OF STOCKPart Number: E69F-TI2/CS-E/FD-AModel: Current-To-Pneumatic Signal ConverterManufacturer: Foxboro Ordering InformationModel: E69F - Field-Mounted Current-to-Pneumatic ConverterEnclosure: -T - Threaded cover - explosionproof (must be used in all explosionproof applications)¹Input Signal Range and Impedance²: I - 4 to 20, 4 to 12, or 12 to 20 mA dc; 170 Ohm; direct or reverse actionOutput Signal²: 2 - 20 to 100 kPa, 3 to 15 psi, or 0.2 to 1.0 bar or kg/cm²Electrical Classification Code: /CS-E/FD-A - FM approved explosionproof for Class I, Groups C and D, Division1; and dust-ignitionproof for Class II, Groups E and G, Division 1. Temperature Class T6.Note:Refer to Electrical Safety Specifications .
