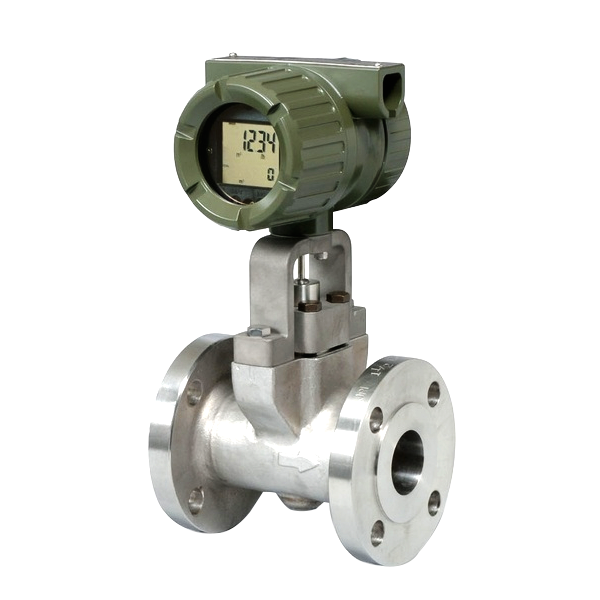

DY050-EBLAA1-2D/L2/M01 | Yokogawa DY Vortex Flowmeter

Part Number: DY050-EBLAA1-2D/L2/M01Model and Suffix CodesModel: DY050 - Size 50 mm (2 inch)Output signal/communication: -E - 4 to 20 mA DC, Pulse, HART Communication (1)Body material(2,3): B - ASTM CF8M (4)Shedder bar material(2,3): L - Duplex Stainless SteelProcess connection(5): AA1 - ANSI Class 150 WaferElectrical connection(6): -2 - ANSI 1/2 NPT Female (7)Indicator(8): D - With indicatorCalibration Certificate: /L2 - Level 2 Declaration and Calibration Equipment ListMaterial Certificate: Mill sheets: /M01 - 1. MeterbodyOutput signal code '-E': HART 5. (Output signal code '-J' is recommended for HART communication)Refer to Table 1.Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personal and/or damage to plant facilities. It also possible that the instrument itself can be damaged and that fragments from the instrument can contaminate the user's process fluids.Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high temperature steam (+150?C [+302?F] or above).In case of B (ASTM CF8M), the process connection is available for ANSI (AAx, BAx, BSx, CAx) and DIN (ADx, BDx)Refer to Table 2.In case of an explosion type,it depends for an electrical connection on the kind of an explosion protect type. Refer to "OPTION SPECIFICATIONS (FOR EXPLOSION PROTECTED TYPE)"In case of /FF1 or /CF1, CF11, /KF2, /KS2, /SF2, /SS2 the screw length is deeper than ANSI standard for 0.5 to 2 threads.Indicator is not available for remote type detector.
