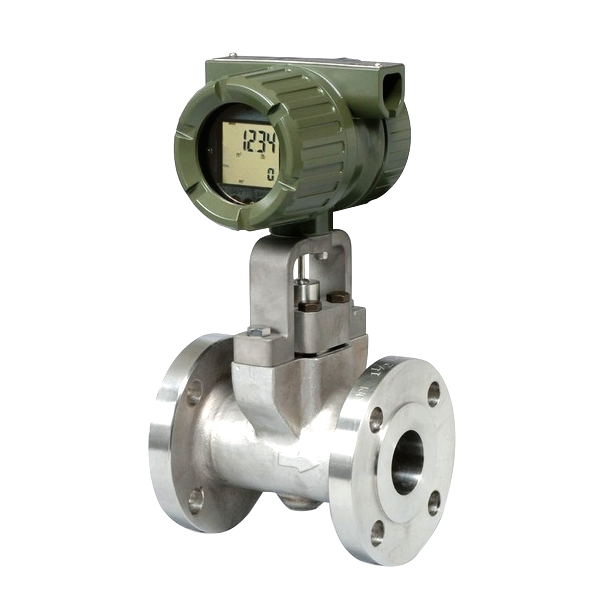

DY040-FBLBA1-4N/KS28 | Yokogawa DY Vortex Flowmeter

Part Number: DY040-FBLBA1-4N/KS28Model and Suffix CodesModel: DY040 - Size 40 mm (1 ? inch)Output signal/communication1,2: -F - Digital communication (Foundation Fieldbus protocol)Body material3,4: B - Stainless steel (CF8M / equiv. 1.4408)Shedder bar material4,5: L - Duplex Stainless SteelProcess connection6,7: BA1 - ANSI Class 150 Flange (RF)Electrical connection8: -4 - ISO M20 x 1.5 FemaleIndicator9: N - None Indicator, Remote type detectorOptions:/KS28Nominal size, Fluid (Liquid, Gas, Steam), Density, Viscosity, Pressure, Temperature, Flow range, Parameters are set at the factory before shipment.For FOUNDATION Fieldbus protocol, refer to GS 01F06F01-01E. For Fieldbus communication type, there are no setting keys on the display board.Refer to table 1. In case of /NC or /HY or /HT, select X (others).Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the instrument itself can be damaged and that fragments from the instrument can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150 ?C [302 ?F] or above). Contact Yokogawa for detailed information of the wetted parts material.Refer to table 1. In case of /NC or /HY or /HT, select X (others).Refer to Table 2.For process connection BD: Flanges with hole pattern, flange diameter, flange facing according EN 1092-1 can be used. Standard surface Ra 3.2 - 6.3. For process connection BA: Flanges with hole pattern, flange diameter, flange facing according ASME B16.5 can be used.In case of an explosion protect type, it depends for an electrical connection on the kind of an explosion protect type.Indicator is not available for remote type detector.
