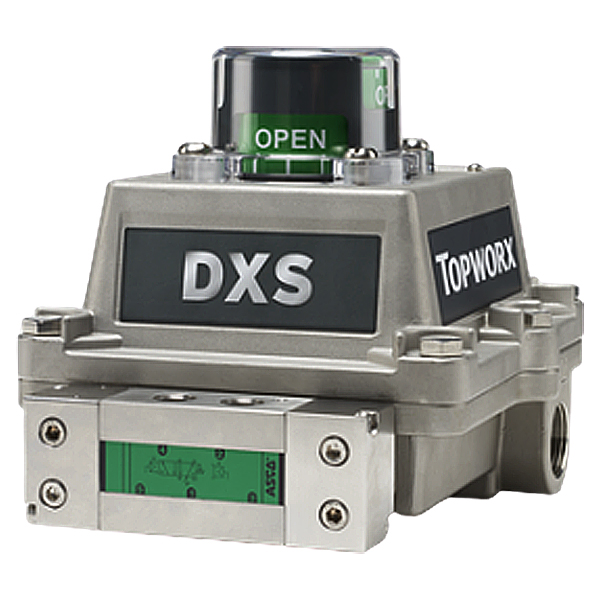

DescriptionThe TopWorx™ DXS is a 316 stainless steel valve controller that combines bus networking, pilot valve, and position sensors into a single globally certified, explosion proof enclosure that attaches to any automated valve package.FeaturesZone 0 Intrinsically SafeZone 1 Flameproof/Explosion ProofStainless Steel Enclosure 0 Intrinsically SafeStainless Steel EnclosureGO™ Switch Leverless Limit SwitchesFOUNDATION FieldbusAS-InterfaceDeviceNet Ordering Information Model DXS 316 Stainless steel (Only available with “R” or “M” shaft options) Bus/Sensor T2 Mechanical Switches(Area class cannot be 2, DXR with G approval not available with pilot)(2)Mech DPDT Area Classification 0 Intrinsically safe (Bus/sensor cannot be AS, DN, ES, or _X; Requires appropriate I.S. barrier) - North America Class I Div 1&2 Groups A, B, C, D Type 4, 4X - ATEX/IECEx Zone 0 II2GD, T6/T4 Ex ia IIC Ex tb IIIC, IP66/67 (Foundation Fieldbus) Zone 1, Ex ib IIC T4, IP67 Visual Display G Standard 90°Green OPEN, Red CLOSED Shaft N NAMUR304 stainless steel Conduit Entries M (Metal Conduit Entries)(2) M20 O-Rings B Buna-NNo Adder
