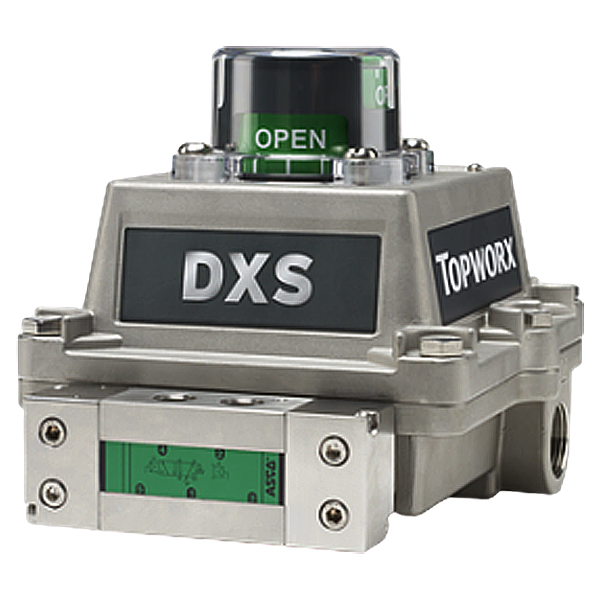

DescriptionThe TopWorx™ DXS is a 316 stainless steel valve controller that combines bus networking, pilot valve, and position sensors into a single globally certified, explosion proof enclosure that attaches to any automated valve package.FeaturesZone 0 Intrinsically SafeZone 1 Flameproof/Explosion ProofStainless Steel Enclosure 0 Intrinsically SafeStainless Steel EnclosureGO™ Switch Leverless Limit SwitchesFOUNDATION FieldbusAS-InterfaceDeviceNet Ordering Information Model DXS 316 Stainless steel (Only available with “R” or “M” shaft options) Bus/Sensor *FL Foundation Fieldbus w/(2) SPDT GO Switches Area Classification 1 Explosion proof / Flame proof (DXP/S only) - North America Class I Div 1 Groups C, D; Class I Div 2, Groups A, B, C, D. (Groups A & B must be hermetically sealed) Type 4, 4X, - ATEX/IECEx Zone 1 II2G, II2GD, T6/T4/T3 Ex d IIB+H2 Ex tb IIIC IP66/67 (O-Rings must be S for DUST certification) Visual Display G Standard 90°Green OPEN, Red CLOSED Shaft N NAMUR304 stainless steel Conduit Entries M (2) M20 O-Rings S SiliconeNo Adder * *FF, *FL and *FP with Area Classification “0” has an ib protection
