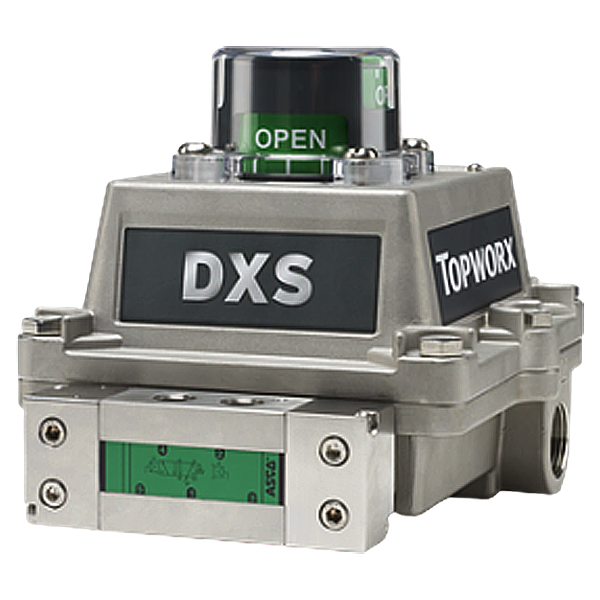

TopWorx DXS Discrete Valve Controllers

DescriptionThe TopWorx™ DXS is a 316 stainless steel valve controller that combines bus networking, pilot valve, and position sensors into a single globally certified, explosion proof enclosure that attaches to any automated valve package.FeaturesZone 0 Intrinsically SafeZone 1 Flameproof/Explosion ProofStainless Steel Enclosure 0 Intrinsically SafeStainless Steel EnclosureGO™ Switch Leverless Limit SwitchesFOUNDATION FieldbusAS-InterfaceDeviceNet Ordering Information Model DXS 316 Stainless steel (Only available with “R” or “M” shaft options) Bus/Sensor 0H 4-20mA transmitter with HART (Not available with switch option T; LH not available w/pilot valve) (LH, ZH Not available with DXR) Area Classification 0 Intrinsically safe(Bus/sensor cannot be AS, DN, ES, or _X; quires appropriate I.S. barrier)- North AmericaClass I Div 1&2Groups A, B, C, DType 4, 4X- ATEX/IECExZone 0II2GD, T6/T4Ex ia IICEx tb IIIC, IP66/67(Foundation Fieldbus)Zone 1, Ex ib IIC T4, IP67 Visual Display G Standard 90°Green OPEN, Red CLOSED Shaft N NAMUR304 stainless steel Conduit Entries M (2) M20 O-Rings B Buna-NNo Adder
