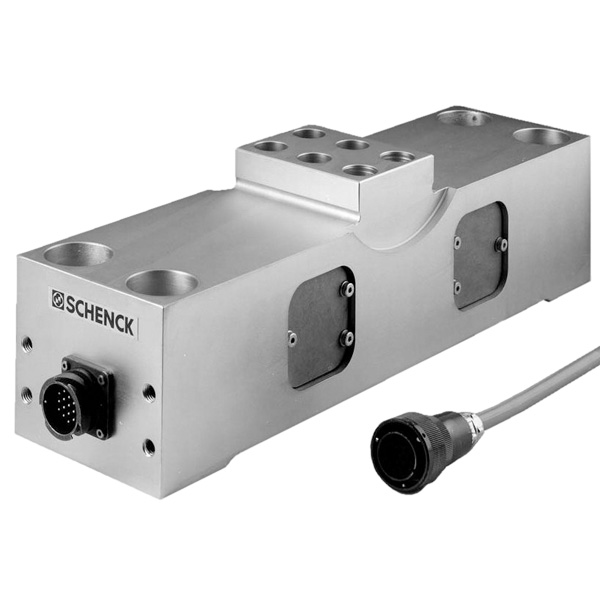

DWB 100 T | Schenck Process DWB Weightbeam

Technical Data Rated capacity 100 t Limit load (with Lq = 0.15 x Ln)Limit load = Maximum admissible load 210 t Rupture load (with Lq = 0.15 x Ln) 350 t Max. admissible side load 85 t Sensitivity 1.38 mV / V Combined error ±0.07 % Creeping under load (30 min) ±0.05 % Input resistance 690 ? + 6 ? Output resistance 700 ? + 4 ? Reference supply voltage 10 V Max. supply voltage 36 V Nominal temperature range -10 °C bis +100 °C Service temperature range -15 °C bis +150 °C Reference temperature +22 °C Storage temperature range -40 °C bis +180 °C Temperature effect on zero signal ±0.05 % / 10 K Temperature effect on sensitivity ±0.03 % / 10 K Corrosion protection hot dip galvanized Protection class IP65
