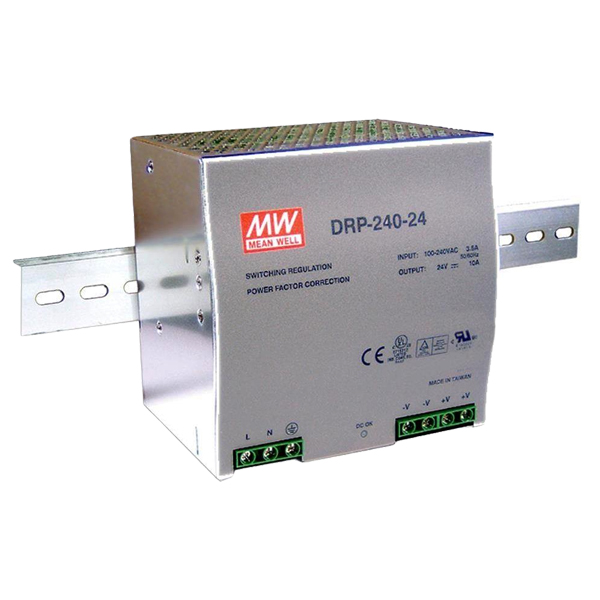

FeaturesUniversal AC input / Full rangeBuilt in active PFC functionProtections: Short circuit / Overload / Over voltage / Over temperatureCooling by free air convectionBuilt-in constant current limiting circuitCan be installed on DIN rail TS-35/7.5 or 15UL 508 (industrial control equipment) approvedLED indicator for power on100% full load burn-in testFixed switching frequency at 70KHzSpecificationsSeriesDRP-240DescriptionAC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; DRP-240-24 is succeeded by NDR-240-24.ApplicationInstallation UL 508ITE EN/UL/IEC 60950TechnologyAC/DCOutput Power (W)240Output Voltage (V)24Output Current (A)10Input Voltage (V)110/230 universal input85 - 264Width (mm)125.5Height (mm)125.2Depth (mm)100Dimming TechnologyNo dimmingPower FormatDIN Rail
