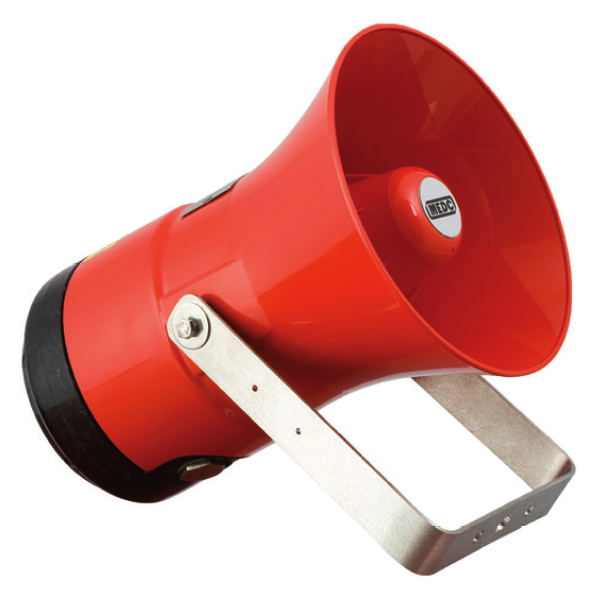

DB3BDG048N2BNR | MEDC DB3B Sounders Range

Technical SpecificationCertification: ATEX, IECEx, INMETRO, TR CU, CCCF, CCOE, SIL1, cULusArea Classification: Zone 1, Zone 2 and non-Ex use.Certified Ambient Temperature: -55°C to +85°CIngress Protection: IP66 & IP67Material: Ex enclosure - Flame retardent, UV stable Glass Reinforced PolyesterFlare - Flame retardent, UV stable thermoplastic polyesterEntries: Up to 2 x M20 or 1/2" NPT. Blanking plug available.Weight: Ex d - 4.6kg, Ex de - 5.4kg (based on long flare unit)No. of Tones: 28 user selectable tonesOptions: Body colour, short flare, tag & duty labels, custom tonesEOL resistor, certification, suitable for Gas or Gas and Dust, Ex atmospheres, terminal chamber, voltage free activation, voltages 12V-48V d.c., 110V-254V a.cFeaturesEx d / Ex de IIC/IIIC T4/T5/T6.ATEX certified.IECEx certified.INMETRO certifiedTR CU certifiedCCCF certifiedCCOE certifiedSIL1 certifiedcULus certifiedCertified temperature -55ºC to +85ºC.*IP66 & IP67.Optional Ex e terminal chamber.Up to 122dB volume control.28 tones, user selectable.3 stage unit remotely switchable.Tones can be programmed to customer's specification.DC supply voltage between 12V and 48V.End of line resistor option.Sounder & beacon combination units available,for further details contact MEDC.Ex enclosure - Glass reinforced polyester.Flare - High impact thermoplastic polyester.Stainless Steel mounting bracket and cover screws.Mounting bracket has ratchet facility as standard.Optional swivel bracket available Ordering Information Model DB3B Certification D ATEX Exd Ex atmosphere G IIC Gas Voltage 048 12-48Vdc Labels N None Entries 2B 2 x M20 Options N None Finish R Natural Red
